Switching Power Solution

We are professional manufacturer of Switching Power Adapter. Our Power Adapter is designed to meet your specific technical and performance requirements.



AC/DC Power Adapter (CEC VI)



Product Image Model Number Output Power
(Max)
Output Voltage
(Max)
Datasheet
EA1005 4.5 ~ 6W 5 ~ 12V
Datasheet
EA1005R 4.5 ~ 6W 5 ~ 12V
Datasheet
EA1012 12W 5 ~ 24V
Datasheet
EA1012R 12W 5 ~ 24V Datasheet
EA1019 15 ~24W 5 ~ 48V Datasheet
EA1019R 15 ~24W 5 ~ 48V Datasheet
EA1024D 10 ~ 36W 5 ~ 48V
Datasheet
EA1024R 10 ~ 36W 5 ~ 48V Datasheet
EA1024W 10 ~ 36W 5 ~ 48V Datasheet
EA1035D 36W 5 ~ 20V Datasheet
EA1035W 36W 5 ~ 20V Datasheet
EA1045D 45W 5 ~ 20V Datasheet
EA1045R 45W 5 ~ 20V Datasheet
EA1045W 45W 5 ~ 20V Datasheet
EA1062 60W 5 ~ 20V Datasheet<
EA1068 25 ~ 72W 5 ~ 56V Datasheet
EA1095 80 ~ 100W 12 ~ 56V Datasheet
EA1101 80 ~ 130W 12 ~ 56V Datasheet
EA1170 130 ~ 180W 12 ~ 56V Datasheet
EA1250 160 ~ 250W 12 ~ 56V Datasheet
EA1300 230 ~ 310W 12 ~ 56V Datasheet

Wall Mount Power Adapter



Product Image Model Number Output Power
(Max)
Output Voltage
(Max)
Datasheet
EA1015 12W 5 ~ 24V Datasheet
EA1015R 10 ~ 15W 3 ~ 24V Datasheet
EA1018W 18 ~ 24W 5 ~ 36V Datasheet

DC/DC Power Adapter



Product Image Model Number Output Power
(Max)
Output Voltage
(Max)
Datasheet
ED1075 75W 15 ~ 24V Datasheet
ED1010 120W 16 ~ 24V Datasheet



Desk Top Type Power Adapter



Product Image Model Number Output Power
(Max)
Output Voltage
(Max)
Datasheet
EA1018D 18 ~ 24W 5 ~ 36V Datasheet
EA1040 19 ~ 45W 5 ~ 48V Datasheet
EA1050 30 ~ 60W 12 ~ 24V Datasheet
EA1052 40 ~ 60W 5 ~ 48V Datasheet
EA1063 54 ~ 65W 8 ~ 24V Datasheet
EA1135 120 ~ 150W 12 ~ 24V Datasheet

Open Frame Power Solution

All models provide universal AC input and full safety agency certifications. Open Frame products are available from 30W to 210W in single, dual, triple or quad output configurations.

Product Image Model Number Number of
output
Output Power
(Max)
Output Voltage
(Max)
Datasheet
EP1065 Single 30 ~ 65W 5 ~ 48V Datasheet
EP2065 Dual 30 ~ 65W 5 ~ 48V
EP3065 Triple 45 ~ 65W 12 ~ 24V
EP1120 Single 80 ~ 120W 5 ~ 48V Datasheet
EP2120 Dual 86 ~ 110W 5 ~ 48V
EP3120 Triple 90 ~ 110W 5 ~ 48V
EP4120 Quad 110W 12 ~ 24V
EP1200 Single 100 ~ 200W 5 ~ 56V Datasheet
EP2200 Dual 100 ~ 180W 5 ~ 56V
EP3200 Triple 150 ~ 175W 12 ~ 56V
EP4200 Quad 150 ~ 175W 12 ~ 24V

For industrial, instrumentation, medical and networking applications requiring 5 Watts to 450 Watts, Astrodyne’s open frame switching supplies offer the most flexible OEM solution. Models include industry standard footprint versions for conventional design needs.

Product Image Model Number Number of
output
Output Power
(Max)
Output Voltage
(Max)
Datasheet
EFM5 Up to Triple (3) Output 5W 3.3 ~ 24V Datasheet
EFM10 Up to Triple (3) Output 10W 3.3 ~ 24V Datasheet
EFM15 Up to Triple (3) Output 15W 3.3 ~ 24V Datasheet
PMK225U Single Output 225W 5 ~ 48V Datasheet
PMK450 Single Output 450W 12 ~ 48V Datasheet

Modular Power Solution

Modular Power Solution
Excelsys Technologies is the leading designer and manufacturer of high efficiency, low profile power supplies providing power solutions from 200W – 1800W. The power supplies offers unrivalled performance and demonstrates our global leadership in product reliability, efficiency and cost competitiveness.

UltiMod



Product Image Model Description Datasheet Manual
UX4
  • 4 Slots and up to 600W output power
  • Dual Safety Approvals: UL/EN60950 2nd edition & UL/EN60601-1 3rd edition
Datasheet Manual
UX6
  • 6 Slots and up to 1200W output power
  • Dual Safety Approvals: UL/EN60950 2nd edition & UL/EN60601-1 3rd edition



PowerMod

The PowerMods provide output voltages from 1.5V to 58V. The feature rich PowerMods provide a suite of output signals and user configurable functions increasing design-in flexibility. User configurable functions include local and remote adjustment, adjustable current limit, dynamic voltage trim/adjust, alternative current limiting technique and inhibit/enable functions. The PowerMods in this range include XgA-XgL and Xg1-Xg8.



Product Image Model Description Datasheet
Wide Trim
  • UL/EN60950 and UL/EN60601 approved
  • Output voltages from 1.0V to 58V
  • XgM, XgN, XgP and XgQ
Datasheet
Reactive Load
  • UL/EN60950 and UL/EN60601 approved
  • Output voltages from 8V to 58V, Or-ing FET protection on output Reverse Voltage Protection on output
Datasheet



CoolX

The CoolX600 Series is the new, revolutionary, convection-cooled modular power supply that delivers an incredible 600W without fan assisted cooling from a very compact 8.5 x 4.5 x 1U package.

The only fanless modular power supply on the market, the CoolX600 offers system designers best in class performance for efficiency and reliability in addition to the most comprehensive feature set and specifications available.



Product Image Model Description Datasheet Manual
CX06S
  • NFF Series; No Fan Featured No Acoustic Noise or Vibrations & break through level Reliability
  • High Input Surge Protection Reverse Energy Protection 24W Standby Power Safety Approved to 5000m Altitude
  • 93% Efficiency
Datasheet Manual
CX06M



CoolX1800

The CoolX1800 Series is the new modular power supply from Excelsys. It provides an incredible 1800W in a compact 5 x 10.5 x 1U package, typically 50% more power than the industry standard.

The CoolX1800 offers system designers best in class efficiency and reliability in addition to the most comprehensive feature set and specifications available..



CoolPac Slots Power Medical Approval IEC60601-13rd edition & IEC60601-1-2 4th edition(EMC) Industrial Approval IEC IEC62368-1 Edition 2 Datasheet Manual
CX18S 6 1800W YES YES Datasheet Manual
CX18M 6 1800W YES



Xsolo

The Xsolo family of high efficiency, high reliability single output power supplies from Excelsys Technologies provides up to an incredible 1008W in an extremely compact package. Available in two package types, the high efficiency Xsolo delivers an incredible convection cooled 504W in an open-frame U-channel form factor and up to 1008W in an enclosed, fan cooled chassis.



Product Image Model Description Datasheet Manual
XS 500
  • Single output: 24V, 36V or 48V
  • Ultra high efficiency, >92%
  • Low profile: 1U height (40mm)
  • CE101 & CE102 Compliant, Convection Cooled 500W
Datasheet Manual
XS 1000
  • Single output: 24V, 36V or 48V
  • Ultra high efficiency, >92%
  • Low profile: 1U height (40mm)
  • CE101 & CE102 Compliant, Fan Cooled 1000W (variable speed fan)



Modular Power Solution – Xgen 4 slots

The Xgen series power supplies, with full safety agency approvals and a 3 Year Warranty, offers industry specific solutions from 200W to 1340W and is used throughout various industries including Medical, Industrial, and Communications.

Product Image Model Power Range Description Datasheet
XL 200W
400W
600W
750W
  • Ultra high efficiency, up to 89% Series / Parallel of multiple outputs
  • UL60950, EN60950 2nd Edition Approved
Datasheet
XM 200W
400W
600W
750W
  • Less than 300µA lea
  • kage Current Ultra high efficiency, up to 89%
  • EN60601-1 and UL60601-1 3rd Edition Approved
Datasheet
XK 200W
400W
600W
  • Low Acoustic Noise 39.8dBA
  • Ultra high efficiency, up to 89%
  • UL60950, EN60950 2nd Edition Approved
Datasheet
XR 200W
400W
600W
  • Low Acoustic Noise 39.8dBA
  • Less than 300µA leakage current
  • EN60601-1 and UL60601-1 3rd Edition Approved
Datasheet
XT 200W
400W
  • Ultra Low Noise Power Supply
  • Ultra high efficiency, up to 90%
  • UL60950, EN60950 2nd Edition Approved
Datasheet
XN 200W
400W
  • Medically Approved Ultra Low Noise Ultra high efficiency, up to 90%
  • UL60601-1, EN60601-1 3rd Edition Approved
Datasheet


Modular Power Solution – Xgen 6 slots

Product Image Model Power Range Description Datasheet
XC 400W
700W
1000W
1200W
1340W
  • Ultra high efficiency, up to 90%
  • Plug & Play Power – allows fast custom configuration
  • UL60950, EN60950 2nd Edition Approved
Datasheet
XV 400W
700W
1000W
1200W
1340W
  • Ultra high efficiency, up to 90%
  • Less than 300µA leakage current
  • EN60601-1 and UL60601-1 3rd Edition Approved
Datasheet
XQ 400W
700W
1000W
1200W
1340W
  • Ultra high efficiency, up to 90%
  • Low Acoustic Noise 42.7dBA.
  • LUL60950, EN60950 2nd Edition Approved
Datasheet
XZ 400W
900W
1200W
  • Low Acoustic Noise 42.7dBA
  • Less than 300µA leakage current
  • EN60601-1 and UL60601-1 3rd Edition Approved
Datasheet
XB 400W
600W
800W
  • Ultra Low Noise < 38.3dBA
  • Ultra high efficiency up to 90%
  • UL60950, EN60950 2nd Edition Approved
Datasheet
XW 400W
600W
800W
  • Ultra Low Noise Power Supply
  • Ultra high efficiency, up to 90%
  • UL60601-1, EN60601-1 3rd Edition Approved
Datasheet
XH 400W
600W
  • Ultra high efficiency, up to 90%
  • UL60950, EN60950 2nd Edition Approved
Datasheet


Modular Power Solution – Hi-Rel

Designed for use in harsh operating environments, the XF family is conformal coated and ruggedized to withstand extremes in shock and vibration as well as operation over a wide temperature range of -55 to 70°C. Applications include Harsh Industrial, Test and Measurement, Communications, Fixed and Mobile Radar and Military Electronics which require COTS solutions.



Product Image Model Power Range Description Datasheet
XF 400W
700W
1000W
  • 1000W in a 1U x 260 x 127mm package
  • -55 degC to 70 degC operation
  • MIL-STD 810G & MIL-461F Conformal coated
Datasheet

Programmable Power Solution


Designs & Manufactures robust current-fed programmable DC power supplies that set industry standards for quality, size and control. Experience in power electronics is reflected in its 1.5 kW to 2000 kW+ product line, quality service, and reputation for excellence.



Product Image Model Description Datasheet Manual
SL Series
  • Power Levels: 1.5 kW, 2.6 kW, 4 kW, 6 kW, 8 kW
  • Package Size: 1U Rack-mount
  • Number of Models: 70
  • Available Voltages: From 0-5 to 0-1000 Vdc
  • Available Currents: From 0-1.5 to 0-250 Adc
Datasheet Manual
XR Series
  • Power Levels: 2 kW, 4 kW, 6 kW, 8 kW, 10 kW
  • Package Size: 2U Rack-mount
  • Number of Models: 70
  • Available Voltages: From 0-5 to 0-10000 Vdc
  • Available Currents: From 0-0.2 to 0-600 Adc
Datasheet
Manual
TS Series
  • Power Levels: 5 kW, 10 kW, 15 kW, 20 kW, 25 kW, 30 kW, 45 kW
  • Package Size: 3U to 9U Rack-mount
  • Number of Models: 80
  • Available Voltages: From 0-5 to 0-4000 Vdc
  • Available Currents: From 0-1.2 to 0-2700 Adc
Datasheet Manual
MS Series
  • Power Levels: 30 kW, 45 kW, 60 kW, 75 kW
  • Package Size: Floor Standing
  • Number of Models: 80
  • Available Voltages: From 0-5 to 0-4000 Vdc
  • Available Currents: From 0-7.2 to 0-4500 Adc
Datasheet Manual
MT Series
  • Power Levels: 100 kW to 2000 kW+
  • Package Size: Floor Standing
  • Number of Models: 65
  • Available Voltages: From 0-16 to 0-4000 Vdc
  • Available Currents: From 0-24 to 0-24000 Adc
Datasheet Manual

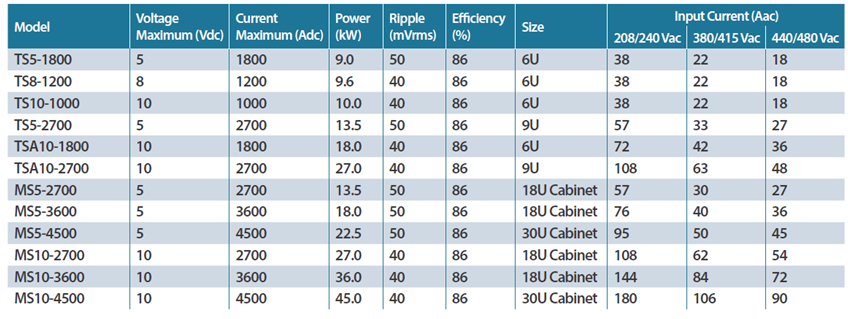

Low Voltage High Current Units

Magna-Power Electronics offers a range of standard low voltage high current units based on TS Series IV and MS Series IV that do not fit in these series’ standard power envelopes. All of the product options are available for these models.

DC Electronic Load

Magna-Power’s patent pending Active Resistance Technology is a completely new approach to electronic loads. By utilizing a switched binary matrix of resistances and MOSFET network, combined with Magna-Power’s new MagnaLINK™ distributed DSP architecture, it delivers the same features and performance as traditional electronic loads, at a fraction of the price. Beyond voltage, current, resistance, and power control modes, it also provides a rheostat control mode, allowing direct control of the product’s internal resistance network.

Finally, an electronic load control mode with no bandwidth constraint



Product Image Model Description Datasheet
ALx Series
  • Power Levels: 1.5 kW, 2.5kW
  • Package Size: 3U Rack-mount
  • Number of Models: 6
  • Available Voltages: From 0-200 to 0-1,000 Vdc
  • Available Currents: From 0-120 to 0-600 Adc
  • Technology: Air Cooled, Linear
Datasheet
ARx Series
  • Power Levels: 7.5 kW, 45kW
  • Package Size: Various
  • Number of Models: 18
  • Available Voltages: From 0-200 to 0-1,000 Vdc
  • Available Currents: From 0-15 to 0-900 Adc
  • Technology: Air Cooled, Active Resistance
Datasheet
WRx Series
  • Power Levels: 15 kW, 120kW
  • Package Size: Various
  • Number of Models: 15
  • Available Voltages: From 0-200 to 0-1,000 Vdc
  • Available Currents: From 0-15 to 0-2,400 Adc
  • Technology: Water Cooled, Active Resistance
Datasheet

Wide-range Programmable DC Power Supply

APM provides stable DC output and wider range voltage and current. For single unit, current range could reach to 200A. Voltage range could reach to 800V. One unit programmable power supplier could substitute several rectangular power.
It could output multiple voltage and current group, set timed output time, provide OVP、OCP、OPP via front panel or PC. It supports list file function with built-in automotive electronics test waveform. Standard interfaces include RS232、RS485、USB、LAN. GPIB is optional. It could apply in various fields.



High Power Programmable DC Power System

APM provides stable DC output. Built-in voltage and current measurement function could provide wider range voltage and current combination. Single unit could cover range from 12KW to 40KW. Power rang could reach to 2000A and voltage range could reach to 1200V.
DC source system can fulfil different kinds of DC power applications. Users can set the output voltage, current arbitrarily. Measure all kinds of features and display on VFD. At the meanwhile, power source provides multi standard interface, simplify and accelerate test development.





High Performance Programmable AC Source

It is a switching mode single-channel output high-precision programmable AC power source, which adopts high speed DSP+CPLD control, high frequency PWM power technology and active PFC design to realize AC/DC stable output. It is featured with high power density, high reliability and high precision, meanwhile it possesses operation interface of touch screen and keys manually. It is able to analog output normal or abnormal input for electrical device to meet test requirements. Meet the verication of power electronics, motors, lighting, avionics, automotive electronics research and development quality assurance laboratory, as well as the production test verication of factory production line.



3-Phase Programmable AC Source

It is a single 3-phase output programmable AC power supply which provides with high power density. With high speed DSP+CPLD control, high frequency PWM technology, active PFC design, It is able to provide not only stable DC/AC output power, but also 3-phase / 1-phase output. It is featured with high power density, high reliability and high precision, meanwhile it possesses operation interface of touch screen and keys manually. It is able to analog output normal or abnormal power input for electrical device to meet test requirements, which is applicable to electric, lighting, aviation sectors, etc. It could be applied to enterprise’s production test as well.

Demanding Power Solution

TDI Power designs and manufactures AC – DC power solutions for a wide range of markets and applications. With products ranging from a few hundred watts within a simple power shelf through to configured solutions at 100kW+ TDI has a broad portfolio of products to draw on.



Product Image Model Description Datasheet Manual
Mercury Series
AC-DC
  • AC-DC rectifiers/front ends are available in
  • three mechanical package sizes with
  • output power rated versions of
  • 800W, 1200W, 2700W, 3800W & 4300W
Datasheet Manual
Liquid Blade Series
  • Three Phase Delta Input (380V, 400V, 440V or 480VAC, 50/60Hz) , no neutral required
  • 16.5kW, 60V, 360A DC Output in 1U Standard
    19” Package (180 & 400V models also available)
Datasheet
ESPM
  • Environmentally Sealed Power Modules 2500W, 50V @ 50A
  • AC-DC Rectifier is Environmentally Sealed and ideal for Harsh Environments
Datasheet
Mercury Flex Series AC-DC
  • Mercury-Flex is the perfect rectifier solution for applications that require a flexible digitally controlled industrial power supply with a universal 90 to 264VAC 50/60Hz single phase input, and a wide choice of DC output voltage ranges: 28V, 56V, 85V, 125V, 400V.
Datasheet



DC-DC Converter Module

TDI Power produces DC-DC converter solutions for a wide range of applications. Often, an application will already have a DC power source available but will need to supply power to equipment requiring a different voltage. With input voltages up to 750V and a wide range of packaging options, TDI Power has the capability to efficiently customise solutions for a wide range of applications.

Product Image Model Description Datasheet
Mercury Series
DC-DC
  • DC-DC rectifiers/front ends with output power rated 1200W
  • Vin: -40 to -60Vdc
  • Vout: 27Vdc
Datasheet



DC-DC Converter Module – LiquidCore Series

Product Image Model Description Datasheet
3kW DC-DC
  • IP67 and IP6k9k Environmental Protection, 180-450VDC Input Voltage Range 9-16VDC Output Voltage Range
Datasheet
4kW 400V
  • IP67 and IP6k9k Environmental Protection, 290-430VDC Input Voltage Range 22-30VDC Output Voltage Range
Datasheet
4kW 700V
  • IP67 and IP6k9k Environmental Protection
    550-850VDC Input Voltage Range 22-32VDC Output Voltage Range
Datasheet



DC-AC Inverter Module

TDI Power offers two standard series of modular DC-AC Inverters that provide True Sine Wave outputs from 24 Vdc or 48 Vdc sources.
The modules are used in a variety of applications including Telecommunications, Data Center, Alternative Energy, Industrial, and COTS.



Product Image Model Description Datasheet Manual
LPE Series
  • 48V or 24VDC Input; True Sine Wave Output
  • 1U High, 11.7” (297mm) Shelf Depth (1% THD (Total Harmonic Distortion))
Datasheet Manual
LCE Series
  • LCE 1000VA, 24V in
Datasheet
  • LCE 1500VA, 48V in
Datasheet
  • LCE-Q 1750VA, 360V in
Datasheet

High Voltage Power Solution


Advanced Energy is a leading provider of high voltage power supplies for a wide range of standard and custom OEM applications. Our HiTek Power® and UltraVolt® products range from 62 V to 100 kV at power levels ranging from 100 mW to 100 kW.

Mass Spectrometry Power Supply ModulesX-Ray Power Supplies
Precision SEM E-Beam Power Supplies
Capacitor-Charging Power Supplies
Ion Pump Power Supplies
Ink-Jet Printer Power Supplies
Versatile High Voltage Power Supply Modules
Photomultiplier Power Supplies
Micro-Sized High Voltage Modules
Single-Output High Voltage Modules
Multi-Output High Voltage Modules
High Voltage Amplifiers
High Voltage Power Systems
Isolated Low Voltage Power Supplies
Precision Non-Isolated Filament Supply


Mass Spectrometry Power Supply Modules

The MS product range contains reversible products that can achieve a switching speed of 10ms to 99% of the output voltage, ripple and noise down to 10mV and a temperature coefficient as low as 5ppm/°C.

Being modular in design means variable output combinations are easily achieved with either uni, bi-polar or reversible outputs.

The MS modules run to a maximum of ±30kV and up to 85W, all with an input voltage of +24VDC.



Product Image Model Number Output Power
(Max)
Datasheet
MSS
  • Output voltages from 5kV to 20kV depending on model
  • 5W output power
  • Small package size
  • Versatile control option
  • Screened case for low magnetic radiation
Datasheet
MSQ
  • Quad outputs (from 400V to 1500V)
  • 85W output power
  • Each output individually protected
  • High reliability
  • Screened case for low magnetic radiation
  • Compact design
Datasheet
MSP
  • Output voltages from 1kV to 15kV depending on model
  • High stability
  • Low ripple (as low as 10mV)
  • Low temperature coefficient
  • Screened case for low magnetic radiation
  • High reliability
  • Versatile control options
Datasheet
MSRL
  • Output voltages from ±1kV to ±30kV depending on model
  • Reversible outputs (using HV relays)
  • High stability
  • Low ripple
  • Low temperature coefficient
  • Screened case for low magnetic radiation
  • High reliability
  • Versatile control options
Datasheet
MSRZ
  • Output voltages from ±1kV to ±10kV depending on model
  • Reversible outputs
  • High stability
  • Low ripple (typically 100mV)
  • Fast switching (typically 20ms to 99%)
  • Low temperature coefficient
  • Screened case for low magnetic radiation
  • High reliability
  • Differential programming input
Datasheet
MSRF
  • Output voltages from ±2.5kV to ±10kV depending on model
  • Reversible outputs
  • High stability
  • Low ripple (typically 300mV)
  • Fast switching (typically 10ms to 99%)
  • Low temperature coefficient
  • Screened case for low magnetic radiation
  • High reliability
  • Differential programming input
Datasheet
MSRD
  • Output voltages from ±5kV to ±12kV depending on model
  • +3kV 400µA programmable floating detector
  • High stability
  • Low ripple (typically Bias 200mV, Detector 3V)
  • Low temperature coefficient
  • Bias Four quadrant output stage
  • Bias controllable through zero
  • High reliability
Datasheet



X-Ray Power Supplies

The quality and performance of your system is only as good as its internal components—particularly when it comes to high voltage. Proper specification, selection, and integration of the high voltage X-ray source & detector determine power quality and reliability and correlate closely with more stable and accurate X-ray production and sample data. AE offers the following high voltage models for X-ray applications.

Product Image Model Number Output Power
(Max)
Datasheet
XRG70
  • 72 W high voltage output, max
  • 20 W grounded filament
  • Exceptionally compact
  • Local and remote operation
  • CE marked for EU LV directive 2006/95/EC
  • EU RoHS compliant to 2002/95/EC
  • Safety interlock
  • High accuracy and stability
Datasheet
XR150
    • 150 W high voltage output
    • 17 W floating filament
    • High accuracy and stability

—Emission accuracy: 0.1%
—Regulation: 0.1%
—Stability: 100 ppm

  • Exceptionally compact
  • Remote operation
  • Analog or RS-232 control interface
    Safety interlock
  • Extensive tube and system protection functions
Datasheet
XR1000
  • 1 KW of output power
  • Extensive tube protection facilities
  • Robust IGBT converter design
  • Short-circuit and overload protection
  • High stability
  • High-accuracy beam current control
  • Low ripple
  • Analog or RS-232 interface
Datasheet



Precision SEM E-Beam Power Supplies

AE’s enabling high voltage products include precision e-beam technologies for SEM (scanning electron microscope) tools that deliver impressive performance and a host of advantages for critical processes to improve tool performance and, ultimately, increase throughput and yield. Accurate and reliable, these power supplies maximize image quality and repeatability

Product Image Model Number Output Power
(Max)
Datasheet
EG353
  • Low ripple (< 1.6 ppm, accelerator) and high stability (< 10 ppm, accelerator)
  • Small footprint module or 19 inch rack-mounted versions
  • -30 kV accelerator, 200 μA, (-35 kV for conditioning)
  • +10 kV extractor, 400 μA, 20 mV ripple (floating)
  • -1 kV suppressor, 100 μA, 30 mV ripple (floating)
  • 5 V at 3 A current-controlled low-ripple (LF < 1 mA, peak to peak) heater (floating)
  • Additional grounded outputs may be added for greater flexibility
  • Easy-to-use digital control and monitoring minimizes setup and configuration times (fiber-isolated RS-232
Datasheet
G603
  • Low ripple and very high stability for demanding applications
  • -60 kV accelerator, 100 μA, 75 mV ripple
  • Active aAccelerator temperature compensation, 5 ppm max over 10°C to 40°C
  • +10 kV extractor, 400 μA, 35 mV (floating)
  • -1 kV suppressor, 100 μA, 25 mV ripple (floating)
  • 5 V, 3 A current controlled low ripple heater (floating)
  • Optional +25 kV focus, 30 μA, 100 mV (floating)
  • Full digital control and monitoring using fibre isolated 29-bit CAN
Datasheet



Capacitor-Charging Power Supplies

The Series CC1000 is a range of high performance, high reliability capacitor charging power supplies intended for use as a component power supply in medical and industrial environments. It features high frequency switching techniques to combine a power factor corrected and resonant converter in a compact unit. This range has been designed to allow customization to suit specific OEM applications.

Product Image Model Number Output Power
(Max)
Datasheet
CC1000
  • 1kW output power
  • High efficiency zero current and voltage switching techniques
  • Positive and negative voltage versions available
  • Excellent pulse to pulse repeatability characteristics
  • Compact size
  • Low weight
Datasheet



Ion Pump Power Supplies

The IP100 is designed to drive a vacuum chamber ion pump, where a vacuum in the region of 1x10E-11 Torr is required.

Product Image Model Number Output Power
(Max)
Datasheet
IP100
  • 90V to 265V AC Operation
  • 115W Output Power
  • Positive or negative polarity
  • Compact size
  • Lightweight – only 1.6kg
  • Protection against output short circuit
  • Current monitor
  • Safety interlock
  • EU RoHS compliant to 2011/65/EU
Datasheet



Ink-Jet Printer Power Supplies

Product Image Model Number Output Power
(Max)
Datasheet
MPM
  • Output power: 1.5 W, continuous
  • Output voltage: 100 V to 3 kV
  • Output isolation option
  • Ripple: 0.05% peak to peak (screened versions)
  • Temperature coefficient: < 300 ppm/°C
  • Stability: < 0.1% per hour after stabilization, over eight hour period
Datasheet
GMH8
  • 0.6 W output power
  • Compact
  • Light weight
  • High reliability
  • Single and dual tracking outputs
  • RoHS compliant to 2011/65/EU
  • CE marked
Datasheet



Versatile High Voltage Power Supply Modules

The MH series is a range of versatile high-voltage power supply modules suitable for specification in OEM equipment. Powered from 24 V DC, they supply up to 60 W output and allow full range control and monitoring of output voltage and current. Custom versions can be produced for specific requirements.

Product Image Model Number Output Power
(Max)
Datasheet
MH60
  • 60 W output power
  • High reliability
  • 24 V DC powered
  • Range of outputs available
  • Positive or negative polarity
  • Short circuit and flashover protection
  • Remotely controllable
  • V and I control
  • V and I monitor
Datasheet
MH100
  • 100 W output power
  • High reliability
  • 24 VDC powered
  • Range of outputs available
  • Positive or negative polarity available
  • Short circuit and flashover protection
  • Remotely controllable
  • V and I control
  • V and I monitor
Datasheet
MHX
  • 100W max output power
  • High reliability
  • 24V DC powered
  • Positive or negative polarity
  • Short circuit and flashover protection
  • Remotely controllable
  • V & I control
  • V & I monitor
Datasheet



Photomultiplier Power Supplies

The Series PM10 is a range of versatile high voltage component photomultiplier modules equally suited to both laboratory and development work and for specification in OEM equipment. Powered from 24 V DC, these units allow full range control and monitoring of voltage and current via 0 to 10 V analog signals and an inhibit signal input. Positive or negative polarity models are available.

Product Image Model Number Output Power
(Max)
Datasheet
PM10
  • 10 W output power
  • V and I control
  • V and I monitor
  • Output inhibit
  • High stability
  • Positive or negative polarity models
  • Short circuit and flashover protected
  • RoHS compliant to 2011/65/EU
  • CE marked
Datasheet



Micro-Sized High Voltage

Measuring only 5.75 cc (0.35 in3), the highly compact, micro-sized US series is specially designed to meet the needs of design engineers working with commercial, military, industrial, and medical applications. These modules allow access to voltages up to 500 V for customers with size-critical requirements.
The XS series of extra-small high voltage power supplies is the smallest regulated DC-to-DC high voltage power supply for applications that require a bias voltage ranging from 0 to 100 V. Measuring only 1.3 cc (0.08 in3), these modules are ideal for use in size-critical applications

Product Image Model Number Output Power
(Max)
Datasheet
XS Series
  • Extra-small size: 1.3 cc
  • Lightweight: 5 g
  • PCB flat mounting: 11 mm height
  • Output from 0 to 100 V
  • 100 mW output power
  • Low ripple (< 50 mV peak to peak)
  • Tight line/load regulation < ±0.0 1%
  • Low temperature coefficient < ±50 ppm per °C
  • Programmable HV output ±2.0% F.S.
  • Output current limit protection
  • 5 or 9 VDC Input
  • Metal case for low radiated noise
Datasheet
US Series
  • 4 models from 0 to 200 V to 500 V
  • Lightweight: 13 g
  • PCB flat mounting: 11 mm height
  • 100 mW output power
  • Tight line/load regulation
  • Arc and short circuit limits
  • 5 or 12 to 15 VDC input
  • TTL enable/disable
  • Miniature and light weight
  • Temperature coefficient of 50 ppm/°C
  • Optional flying lead for HV output
  • Low ripple (< 20 mV peak to peak)
  • Low noise due to metal shielding
  • Precision 2.5 V reference
Datasheet
V Series
  • 7 models from 0 to 600, 1000, 1250, 1500, 2000, 2500, or 3000 V
  • 0.5, 0.8, or 1 W of output power
  • Tight line/load regulation
  • Arc and continuous short circuit protection
  • Self restoring output voltage
  • Low cost
  • Miniature and light weight
  • 5 V reference
  • Voltage monitoring
  • Low ripple (0.01% peak to peak)
  • Optional flying lead for HV output
Datasheet
M Series
  • Seven models from 0 to 600, 1000, 1250, 1500, 2000, 2500, or 3000 V
  • 0.5, 0.8 or 1 W output power
  • Tight line/load regulation
  • Arc and continuous short circuit protection
  • Self-restoring output voltage
  • Low cost
  • Miniature and light weight
  • Voltage monitoring
  • Low ripple (0.01% peak to peak)
  • Optional flying lead for high voltage output
Datasheet
D Series
  • 4 models from 0 to 1 kV through 0 to 6 kV
  • 1, 2, 4, or 6 W output power
  • Low ripple (< 0.02% peak to peak)
  • Tight line/load regulation
  • Output current limit protection
  • Adjustable from 0 to full output
  • Buffered voltage and current monitoring
  • 15 or 24 VDC input
  • Low profile and lightweight
  • PCB flat mounting
Datasheet



Single-Output High Voltage Modules

Product Image Model Number Output Power
(Max)
Datasheet
A Series
  • Eight models from 0 to 62 V through 0 to 6 kV
  • 4, 20, or 30 W of output power
  • Maximum Iout capability down to 0 V
  • Wide input voltage range
  • Available with Ripple Stripper® filter (-F option)
  • Indefinite output short-circuit protection
  • Output current monitor
  • Fixed-frequency, low-stored-energy design
  • > 430,000 hour MTBF at 65°C (149°F)
  • UL/cUL recognized component; CE Mark (LVD and RoHS)
Datasheet
AA Series
  • 22% smaller than standard A series
  • 8 models from 0 to 62 V through 0 to 6 kV
  • 4, 20, or 30 W output power
  • Max Iout capability down to 0 V
  • Wide input voltage range
  • Indefinite output short-circuit protection
  • Output current and voltage monitors
  • Fixed-frequency, low-stored-energy design
  • UL/cUL recognized component; CE Mark (LVD & RoHS)
Datasheet
10A-25A Series
  • 0 to 10kV, 15kV, 20kV, or 25kV output
  • 4, 15, or 30 watts of output power
  • Maximum Iout capability down to 0 Volts
  • Wide input voltage range
  • Indefinite output short-circuit protection
  • Output current & voltage monitors
  • Fixed-frequency, low-stored-energy design
  • >450,000 Hr. MTBF @65°C
Datasheet
30A-40A Series
  • 0 to 30kV, 35kV or 40kV output
  • 4, 15, or 30 watts of output power
  • Maximum Iout capability down to 0 Volts
  • Wide input voltage range
  • Indefinite output short-circuit protectio
  • Output current & voltage monitors
  • Fixed-frequency, low-stored-energy design
  • >400,000 Hr. MTBF @65°C
Datasheet
C Series
  • Seven models from 0 to 125 V through 0 to 6 kV
  • 60, 125, or 250 W of output power
  • Maximum Iout capability down to 0 V
  • Maximum Iout during charge/rise time
  • Output short-circuit protection
  • Very fast rise with very low overshoot
  • High efficiency
  • High power-to-voltage density
  • Very low profile
  • Output current and voltage monitors
  • > 200,000 hour MTBF at 65°C (149°F)
  • Fixed-frequency, low-stored-energy design
Datasheet
High Power C Series
  • 7 models from 0 to 125 Volts through 0 to 6kV
  • 60, 125, or 250 watts of output power
  • Maximum Iout capability down to 0 Volts
  • Maximum Iout during charge/rise time
  • Output short-circuit protection
  • Very fast rise with very low overshoot
  • High efficiency
  • High power to voltage density
  • Very low profile
  • Output current & voltage monitors
  • >200,000 hour MTBF @65°C
Datasheet
E Series
  • Precision output voltage from
  • 0 to 1 kV through 0 to 15 kV
  • PPM level ripple, regulation and stability
  • As low as 10 ppm temperature coefficient and reference
  • 0 to 4, 15/20, or 30 W of output power
  • Maximum Iout capability down to 0 V
  • Voltage and current regulation/limit capability
  • Precision output voltage and current monitors
Datasheet
PXS Series
  • Ultra-miniature size 0.1 in3 (1.6cc)
  • Unipolar models 0 to 5 0V through 300 V
  • Bipolar models 0 to ±25 V through ±150 V
  • Proportional or fixed output voltage
  • Output power of 0 to 1.5 or 3 W
  • Excellent load regulation
  • Efficiency as high as 90%
  • 1000 V isolation from input to output
  • Output can be floated up to 1 kV
  • No heat sink or electrical derating required
  • Lower ripple available with Mu-Metal shielding (-M option
Datasheet
RS Series
  • 12 bipolar models 0 to ±50 to ±700 VDC or 100 to 1400 VDC unipolar
  • Proportional, programmable, or fixed output voltage
  • Output power 0 to 10 W; no minimum load
  • Excellent accuracy ≤±1%
  • Excellent load regulation <0.5%
  • Output ripple ≤±0.5% V pk-pk
  • 2500 V isolation from input to output
  • No heat sink or electrical de-rating required
  • Complimentary to the 1.5/3 W PXS series
  • >840,000 hr MTBF per Belcor TR332
Datasheet



Multi-Output High Voltage Modules

Product Image Model Number Output Power
(Max)
Datasheet
Dual: Aux Series
  • Adds a second + or – HV output
  • Fixed regulated output
  • Encapsulated with “A” or “C” Series HVPS
  • Creates a 4.9 in³ dual-output supply
  • Fixed-frequency, low-stored-energy design
  • High power density
  • Output short-circuit protected
  • UL/cUL Recognized Component; CE Mark (LVD & RoHS)
Datasheet
Triple: Aux Series
  • Adds Focus and Grid outputs
  • Encapsulated within 10A-35A Series
  • Adjustable regulated outputs
  • Creates a 6.5 in³ triple output supply
  • Fixed-frequency, low-stored-energy design
  • High power density
  • Indefinite output short-circuit protection
Datasheet
Dual: Bi-Polar C Series
  • 7 models from 0 to ±125 Volts through 0 to ±6 kV
  • 125 or 250 watts of total output power
  • Dual, independently controlled outputs
  • Output current & voltage monitors
  • High efficiency
  • Maximum Iout down to 0 Volts
  • Low profile
  • Fast Trise with very low overshoot
  • High power to voltage density
  • >200,000 hour MTBF at 65°C
  • Output short-circuit protection
  • Fixed-frequency, low-stored-energy design
Datasheet
Ultravolt® FLHV Series
  • High input output isolation supports floating electronics on high voltage
  • High output stability (< ±0.5%) from no load to full load
  • Accurate monitoring (±2.0%) of the floating bias supply output voltage and current
  • Excellent unit-to-unit repeatability
Datasheet



High Voltage Amplifiers

25ppm/°C on the HV output voltage
25ppm/°C on the output voltage monitor
5ppm/°C on the +10VDC reference
Output control and current monitor calibrate to <±0.5%

Product Image Model Number Output Power
(Max)
Datasheet
HVA Series
  • DC, reversible, and amplifier modes
  • Fast slew rate (40 V/μs) and high bandwidth
  • Can both source and sink current
  • Bipolar models available at 0 to 5 kV
  • Unipolar models available at 0 to 10 kV
  • PPM level line and load regulation
  • 50 ppm temperature coefficient (25 ppm optional)
  • Available reduced ripple option
  • Differential precision 0 to 10 VDC control input
  • Precision output voltage and current monitors
Datasheet
10HVA-20HVA Series
  • Bipolar models available at 0 to 10kV, 15kV, 20kV
  • Unipolar models available at 0 to 15kV & 20kV
  • Operates in DC, reversible, and amplifier modes
  • Fast slew rate (40V/μs) and high bandwidth at an excellent value
  • Can both source and sink current
  • PPM level line & load regulation
  • 25ppm temperature coefficient
    (15ppm optional)
  • Reduced ripple option available
  • Differential precision 0 to 10VDC control input
  • Precision voltage and current monitors
Datasheet



HIGH VOLTAGE POWER SYSTEMS

Configurable 1-4 channel system available to 1 kW Advanced systems feature computerized displays Memory function for loading user data available

Product Image Model Number Output Power
(Max)
Datasheet
HV Rack Configurable Series
  • 1 to 4 configurable high voltage output channels
  • 4 to 1000 W per channel, up to 1000 W total
  • Independent control and monitoring of each channel
  • Voltage and current meters for each channel
  • Constant current / Constant voltage auto-crossover
  • Pre-set before and during bias capability
  • PLC analog/digital remote operation capability
Datasheet
BT-GP Series
  • Available from 0 to 1kV through 0 to 30kV
  • Up to 30W of output power
  • 3.5 digit LED output voltage display
  • Bench-top configuration
  • Single positive or negative output
  • Ruggedized steel enclosure
  • Enters constant current mode when fault occurs
  • Highly portable with built in carrying handle (AC model)
  • Protection against overload, short circuit, arc, and reverse polarity
Datasheet



Isolated Low Voltage Power Supplies

Floating “Hot Deck” isolation module
150 GΩ isolation resistance @15 kV
2 GΩ isolation resistance @ 30 kV
Includes analog I/O, digital I/O & LVPS all isolated to 15 kV / 30 kV

Product Image Model Number Output Power
(Max)
Datasheet
FL Series
  • Isolated up to 15kV
  • DC leakage current of <10nA
  • AC leakage capacitance of <40pF
  • 3 regulated floating LV power outputs
  • Isolated digital I/O to and from floating hot deck
  • Isolated analog I/O to and from floating hot deck
Datasheet
EFL Series
  • Precision analog control
  • Linearity of ±0.05% and accuracy of ±0.2%
  • 10ppm temperature coefficient
  • Isolated up to 15 kV or 30kV
  • Isolation resistance of 150 GΩ (15 kV) or 2 GΩ (30 kV)
  • 4 regulated floating LV power outputs
  • Isolated digital and analog I/O to and from floating hot deck
Datasheet



Precision Non-Isolated Filament Supply

The FIL Series is a non-isolated precision filament supply. This line of regulated DC-DC converters addresses the needs of the high precision and high stability power supply user.

Product Image Model Number Output Power
(Max)
Datasheet
FIL Series
  • High precision and high stability
  • 15PPM temperature coefficient
  • 0 to 5VDC
  • 0 to 3 Amps of current
  • Maximum Iout capability down to 0 Volts
  • Programmable voltage and current controls
  • Indefinite output short-circuit protection
  • Buffered output current & voltage monitors
  • Excellent linearity & accuracy of control
  • Current mode and voltage mode indicator
    Synchronizable
Datasheet

EMI Filter Solution

Our brands of EMI/EMC/ RFI Filter capabilities help your products meet all their requirements and achieve “Mission Success” in the ultimate application. We are a uniquely integrated company for advanced design, engineering, manufacturing, testing and technical support. We offer a complete selection of Power line filters. Standardized as well as customer-specific solutions – help our customers meet international compliance standards and improve the immunity and safety of electrical and electronic equipment.

EMI/EMC solutions, ranging from small 1-phase components to powerful 2500A/690V industrial 3-phase filters. Most standard catalog items carry international approvals (UL, CSA, CE).



Battery Solutions


EP-Power design the best custom battery pack products that are the most cost effective, environmentally safe and exceed all of the specifications.





We Energise The World

ES/ESC Series

ES and ESC series is the most popular series of Rocket batteries and has a proven performance track record of more than 52 years. It has successfully exemplified its quality and reliability in some of the most demanding power conditions by providing relentless backup power supply.

TECHNICAL FEATURES

  • Non-Spillable Sealed Construction
  • Acrylonitrile Butadiene Styrene container and cover
  • Low Pressure Venting System
  • Heavy-Duty Grids
  • Absorbent Glass Mat (AGM) Technology
  • Maintenance-Free Operation
  • Gas Recombination
  • Low Self-Discharge – Long Shelf Life
  • Wide Operating Temperature Range

APPLICATIONS

  • UPS
  • Telecom Communication Equipment
  • Fire Alarm & Security Systems
  • Medical Instruments
  • Emergency Lighting
  • Computer Backup



COMPLIANCE STANDARDS

  • JIS
  • IEC 60896 PART 21/22
  • BS6290-4
  • Eurobat Guide – HIGH Performance

DESIGN LIFE

  • ES Series – 10 years; ESC Series – 10 years



ES SERIES MODELS AH
ES 5-12 12V-5Ah
ES 7-12 12V-7Ah
ES 9-12 12V-9Ah
ES 12-12 12V-12Ah
ES 18-12 12V-18Ah
ES 26-12 12V-26Ah
ES 33-12 12V-33Ah
ES 42-12 12V-42Ah
ES 55-12 12V-55Ah
ES 65-12 12V-65Ah
ES 75-12 12V-75Ah
ES 80-12 12V-80Ah
ES SERIES MODELS AH
ESC100-12 12V-100Ah
ESC 120-12 12V-120Ah
ESC 130-12 12V-130Ah
ESC 150-12 12V-150Ah
ESC 180-12 12V-180Ah
ESC 190-12 12V-190Ah
ESC 200-12 12V-200Ah
ESC 220-12 12V-220Ah
ESC 250-12 12V-250Ah





ESH Series

ESH Series is the highest rate series and can deliver 50% more power than the ESC Series of
Rocket batteries. This is achieved by optimizing the grid plate design and by using advanced plate paste formula.


TECHNICAL FEATURES

  • Non-Spillable Sealed Construction
  • Absorptive Glass Mat System (AGM System)
  • ABS (Acrylonitrile Butadiene Styrene) container and cover
  • Gas Recombination
  • Maintenance-Free Operation
  • Low Pressure Venting System
  • Heavy Duty Grids
  • Low Self-Discharge – Long Shelf Life
  • Wide Operating Temperature Range

APPLICATIONS

    • UPS
    • Telecom Communication Equipment
    • Fire Alarm & Security Systems
    • Medical Instruments
    • Computer Backup



COMPLIANCE STANDARDS

  • JIS C8702,BS 6290/4 and IEC 60896 21/22
  • Eurobat Guide/HF
  • ISO9001/ISO14000
MODEL
ESH 12-350W
ESH 12-370W
ESH 12-430W
ESH 12-470W
ESH 12-520W
ESH 12-670W
ESH 12-750W





ESG Series (2V)


The ESG series of VRLA batteries offers excellent performance and is built to the highest standards. This series offers 100% capacity out-of-the-box and is capable of handling deep discharges. The robust ESG design uses the latest AGM technology to create a range that is suitable for many applications.


TECHNICAL FEATURES

  • Non-Spillable Sealed Construction
  • ABS (Acrylonitrile Butadiene Styrene) container and cover
  • Low Pressure Venting System
  • Heavy Duty Grids
  • GM (Absorbent Glass Mat) Technology ESG-200
  • Maintenance-Free Operation
  • Gas Recombination
  • Low Self-Discharge – Long Shelf Life
  • Wide Operating Temperature Range

APPLICATIONS

    • UPS
    • Telecom Communication Equipment
    • Utilities
    • Solar



DESIGN LIFE

  • 15+ years

COMPLIANCE STANDARDS

  • IEC 60896-21/22



MODEL
ESG-200
ESG-300
ESG-400
ESG-500
ESG-600
ESG-800
ESG-1000
ESG-1200
ESG-1250
ESG-1500
ESG-2000
ESG-3000





ESFT Series (12V Front Terminal)


The rechargeable batteries are lead dioxide systems. The dilute sulphuric acid electrolyte is absorbed by separators and plates and is thus immobilized. If the battery is accidently overcharged by producing hydrogen and oxygen, special one-way valves will allow the gases to escape, thus avoiding excessive pressure build-up. The battery is completely sealed and is therefore maintenance free, leak—proof and usable in any position.


GENERAL FEATURES

  • Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance or water adding
  • Not restricted for air transport and complies with IATA/ ICAO Special Provision A67
  • UL-recognized component
  • Can be mounted in any orientation
  • Computer designed lead, calcium tin alloy grid for high power density
  • Long service life, float or cyclic applications
  • Maintenance-free operation
  • Low self discharge
  • Case and cover available in both standard and flame retardant ABS

DESIGN LIFE

    • 10 years



MODEL
ESFT 50-12
ESFT 80-12
ESFT 100-12
ESFT 110-12
ESFT 130-12
ESFT 180-12
ESFT 200-12
ESFT 205-12



Voltage Conditioner

UST Power Conditioner

Full range of industrial-grade power conditioner and coltage regulators capable of mitigating sags and surges.

Chronic Voltage Interruption Voltage Sag
Voltage outside ±10% for > 60 seconds Voltage < 10% for >3 cycles Voltage < 90% for ½ cycle to 1 minute



Product Image Model Description Datasheet
MiniEVR

CURRENT BALANCER/VOLTAGE REGULATOR
Features:
– Highest fault-clearing capacity available for reliable operation of protective devices
– Continuous load current – no load current interruption on tap switching
– Quickly corrects under/over voltage, sags, and swells

SagFighterNXT

HIGH-PERFORMANCE/VOLTAGE MANAGEMENT
Features:
– SEMI-F47 compliant
– Single phase
– Compatible with all load types

EcoVolt

VOLTAGE OPTIMIZATION/VOLTAGE REGULATOR
Features:
– Protect critical equipment from damaging
– Extend the life of your equipment motors,
lights and other voltage-dependent equipment

SureVolt

POWER CONDITIONER/VOLTAGE REGULATOR
Features:
– Fast voltage regulation corrects under/over voltage, sags and swells
– Built-in surge suppression for surges and spikes
– Transformer shielding reduces line noise to deliver clean power

SagFighter

POWER CONDITIONER/VOLTAGE SAG CORRECTION
Features:
– Sag protection compliant with SEMI-F47
– Full sag correction within 2 milliseconds
– Battery-free design

Medical Power Solution

MediPower

The new MediPower™ medical power system provides 175VA of output with a peak power of 250VA. The efficient design provides the necessary power to support medical equipment, while providing the proper overload capability required by devices such as printers.

The MediPower™ series provides a true sign wave AC output of 120V, with a universal AC input at 90Vac to 264Vac, enabling world wide support with a single unit. It can seamlessly change from an AC outlet to battery operation without the need for a transfer switch. This proven topology allows uninterrupted AC power at the output, irrespective of any power disturbance at the input.

MediPower™ is a fully integrated
UL/IEC60601-1 Mobile Medical Power System.



EDAC understand the unique requirements of the Medical Market. It offers products that meet or exceed the demanding needs of the customer. Our Medical Power Solutions are used by the worlds leading medical Equipment manufacturers in a variety of applications including: clinical diagnostic equipment, medical lasers, medical imaging, dialysis equipment, skin treatment and regeneration.



Product Image Model Output Power
(Max)
Output Voltage
(Max)
Datasheet
EM1005 4.5 ~ 6W 5 ~ 12V Datasheet
EM1005R 4.5 ~ 6W 5 ~ 12V Datasheet
EM1012 12W 5 ~ 24V Datasheet
EM1012R 12W 5 ~ 24V Datasheet
EM1019 15 ~ 24W 5 ~ 48V Datasheet
EM1019R 15 ~ 24W 5 ~ 48V Datasheet
EM1024D 10 ~ 36W 5 ~ 48V Datasheet
EM1024R 10 ~ 36W 5 ~ 48V Datasheet
EM1024W 10 ~ 36W 5 ~ 48V Datasheet
EM1068 25 ~ 72W 5 ~ 56V Datasheet
EM1095 80 ~ 100W 12 ~ 56V Datasheet
EM1101 80 ~ 130W 12 ~ 56V Datasheet
EM1250 160 ~ 250W 12 ~ 56V Datasheet
EM1300 230 ~ 310W 12 ~ 56V Datasheet

Medical Grade EMI Filters

Our complete line of off-the-shelf filters is available in a medical grade version. All filters are approved with variable line to ground capacitances to meet leakage current requirements of all applications and environments. Applications include patient medical devices, diagnostic equipment, surgical beds, MRI and X-ray machines and more.
