Programmable Power Solution

Designs & Manufactures robust current-fed programmable DC power supplies that set industry standards for quality, size and control. Experience in power electronics is reflected in its 1.5 kW to 2000 kW+ product line, quality service, and reputation for excellence.



Product Image	Model	Description	Datasheet	Manual
	SL Series	Power Levels: 1.5 kW, 2.6 kW, 4 kW, 6 kW, 8 kW Package Size: 1U Rack-mount Number of Models: 70 Available Voltages: From 0-5 to 0-1000 Vdc Available Currents: From 0-1.5 to 0-250 Adc	Datasheet	Manual
	XR Series	Power Levels: 2 kW, 4 kW, 6 kW, 8 kW, 10 kW Package Size: 2U Rack-mount Number of Models: 70 Available Voltages: From 0-5 to 0-10000 Vdc Available Currents: From 0-0.2 to 0-600 Adc	Datasheet	Manual
	TS Series	Power Levels: 5 kW, 10 kW, 15 kW, 20 kW, 25 kW, 30 kW, 45 kW Package Size: 3U to 9U Rack-mount Number of Models: 80 Available Voltages: From 0-5 to 0-4000 Vdc Available Currents: From 0-1.2 to 0-2700 Adc	Datasheet	Manual
	MS Series	Power Levels: 30 kW, 45 kW, 60 kW, 75 kW Package Size: Floor Standing Number of Models: 80 Available Voltages: From 0-5 to 0-4000 Vdc Available Currents: From 0-7.2 to 0-4500 Adc	Datasheet	Manual
	MT Series	Power Levels: 100 kW to 2000 kW+ Package Size: Floor Standing Number of Models: 65 Available Voltages: From 0-16 to 0-4000 Vdc Available Currents: From 0-24 to 0-24000 Adc	Datasheet	Manual

Low Voltage High Current Units

Magna-Power Electronics offers a range of standard low voltage high current units based on TS Series IV and MS Series IV that do not fit in these series’ standard power envelopes. All of the product options are available for these models.

DC Electronic Load

Magna-Power’s patent pending Active Resistance Technology is a completely new approach to electronic loads. By utilizing a switched binary matrix of resistances and MOSFET network, combined with Magna-Power’s new MagnaLINK™ distributed DSP architecture, it delivers the same features and performance as traditional electronic loads, at a fraction of the price. Beyond voltage, current, resistance, and power control modes, it also provides a rheostat control mode, allowing direct control of the product’s internal resistance network.

Finally, an electronic load control mode with no bandwidth constraint



Product Image	Model	Description	Datasheet
	ALx Series	Power Levels: 1.5 kW, 2.5kW Package Size: 3U Rack-mount Number of Models: 6 Available Voltages: From 0-200 to 0-1,000 Vdc Available Currents: From 0-120 to 0-600 Adc Technology: Air Cooled, Linear	Datasheet
	ARx Series	Power Levels: 7.5 kW, 45kW Package Size: Various Number of Models: 18 Available Voltages: From 0-200 to 0-1,000 Vdc Available Currents: From 0-15 to 0-900 Adc Technology: Air Cooled, Active Resistance	Datasheet
	WRx Series	Power Levels: 15 kW, 120kW Package Size: Various Number of Models: 15 Available Voltages: From 0-200 to 0-1,000 Vdc Available Currents: From 0-15 to 0-2,400 Adc Technology: Water Cooled, Active Resistance	Datasheet

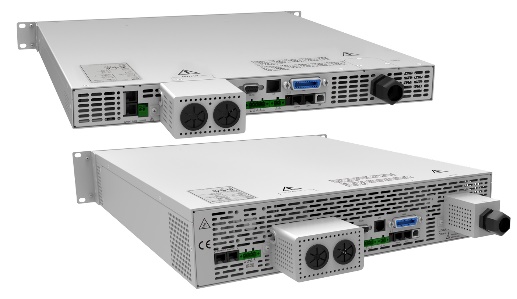

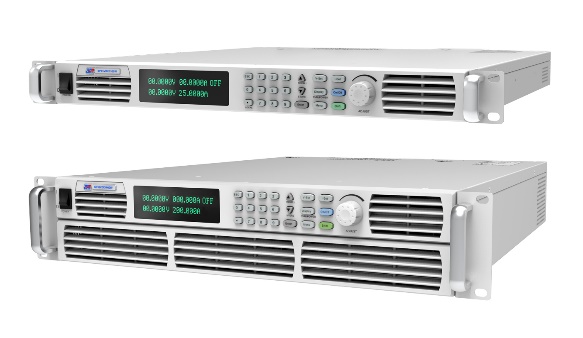

Wide-range Programmable DC Power Supply

APM provides stable DC output and wider range voltage and current. For single unit, current range could reach to 200A. Voltage range could reach to 800V. One unit programmable power supplier could substitute several rectangular power.
It could output multiple voltage and current group, set timed output time, provide OVP、OCP、OPP via front panel or PC. It supports list file function with built-in automotive electronics test waveform. Standard interfaces include RS232、RS485、USB、LAN. GPIB is optional. It could apply in various fields.

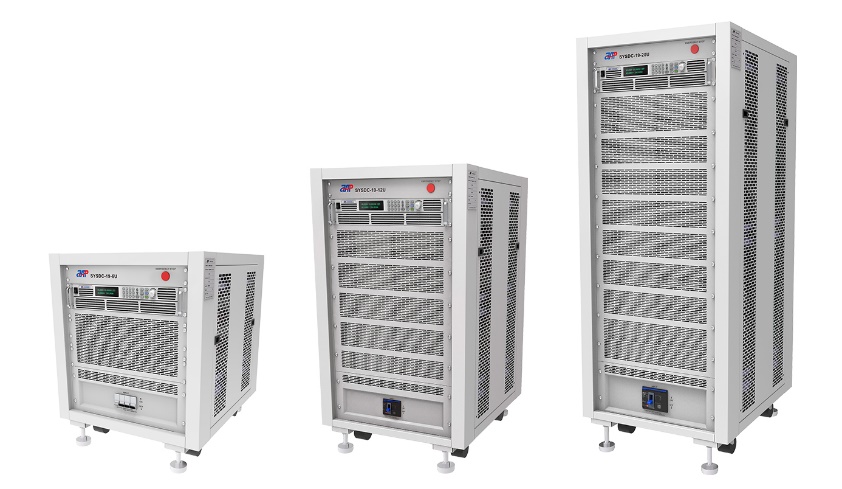

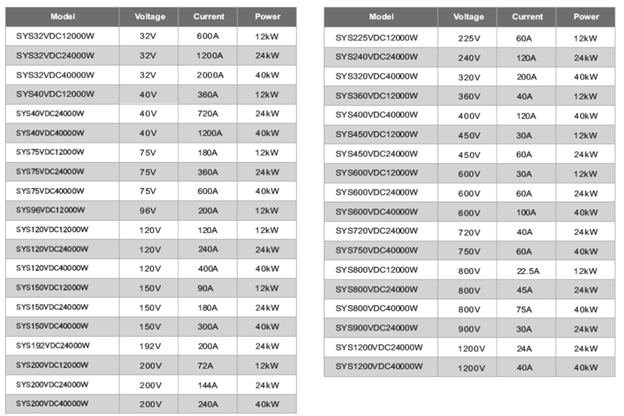

High Power Programmable DC Power System

APM provides stable DC output. Built-in voltage and current measurement function could provide wider range voltage and current combination. Single unit could cover range from 12KW to 40KW. Power rang could reach to 2000A and voltage range could reach to 1200V.
DC source system can fulfil different kinds of DC power applications. Users can set the output voltage, current arbitrarily. Measure all kinds of features and display on VFD. At the meanwhile, power source provides multi standard interface, simplify and accelerate test development.

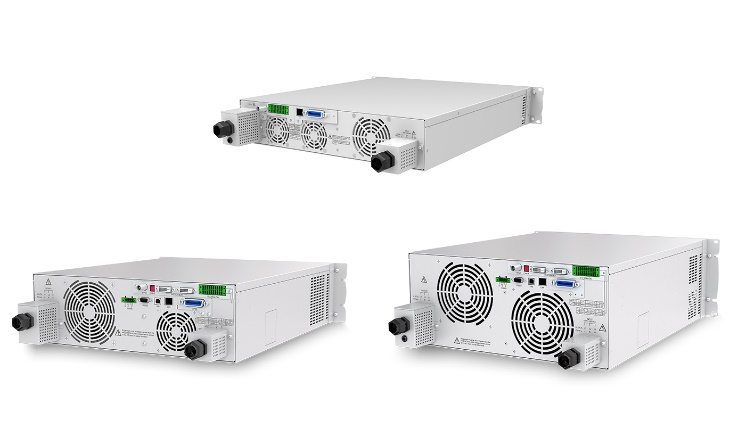

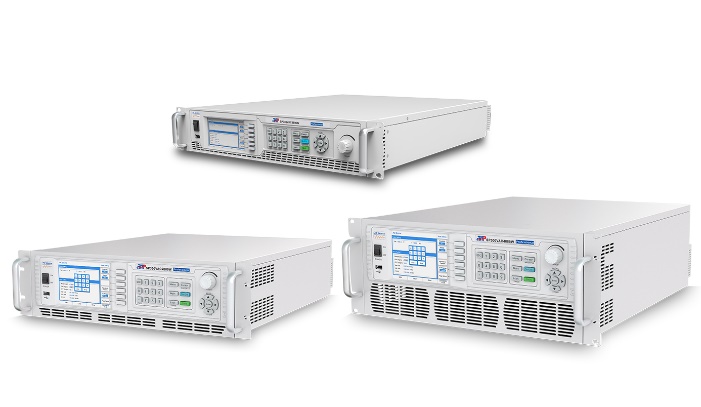

High Performance Programmable AC Source

It is a switching mode single-channel output high-precision programmable AC power source, which adopts high speed DSP+CPLD control, high frequency PWM power technology and active PFC design to realize AC/DC stable output. It is featured with high power density, high reliability and high precision, meanwhile it possesses operation interface of touch screen and keys manually. It is able to analog output normal or abnormal input for electrical device to meet test requirements. Meet the verication of power electronics, motors, lighting, avionics, automotive electronics research and development quality assurance laboratory, as well as the production test verication of factory production line.

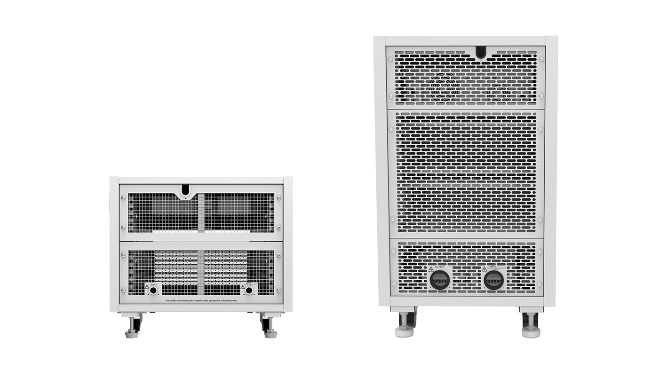

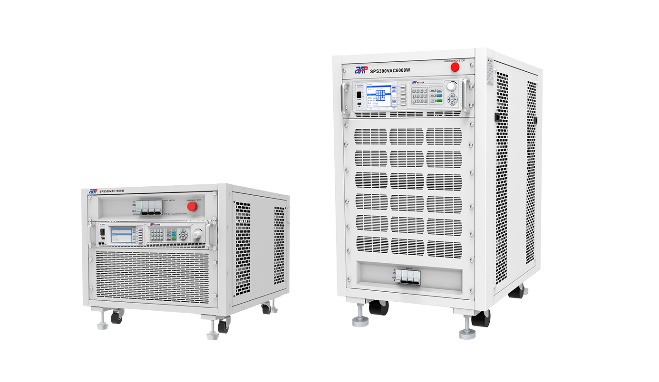

3-Phase Programmable AC Source

It is a single 3-phase output programmable AC power supply which provides with high power density. With high speed DSP+CPLD control, high frequency PWM technology, active PFC design, It is able to provide not only stable DC/AC output power, but also 3-phase / 1-phase output. It is featured with high power density, high reliability and high precision, meanwhile it possesses operation interface of touch screen and keys manually. It is able to analog output normal or abnormal power input for electrical device to meet test requirements, which is applicable to electric, lighting, aviation sectors, etc. It could be applied to enterprise’s production test as well.
