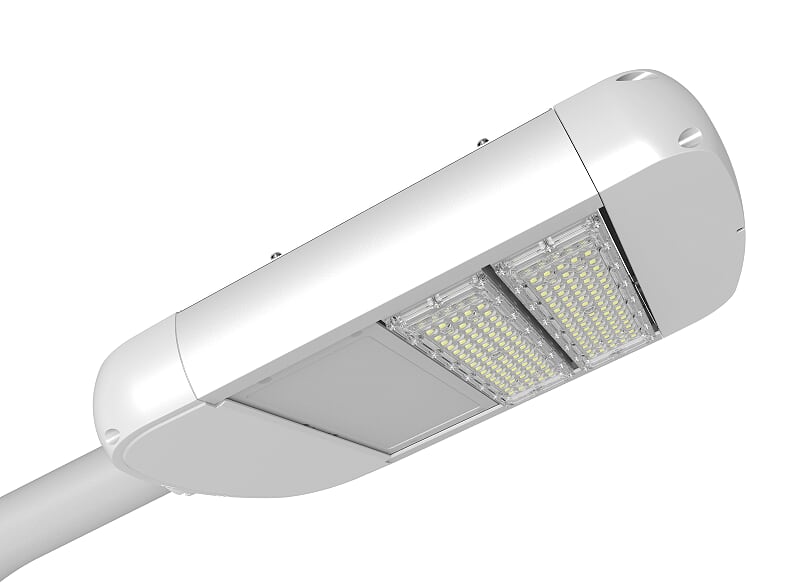

EP-Power LED street lamp

EP-XXX-SL series offers a direct conventional streetlight replacement. It provides an immediate power saving of at least 40% when compared to conventional streetlight.

EP-XXX-SL series is designed with an universal input for fast and easy installation. The LED driver is under drive by 20% that we keep the internal components lesser stress and cooler, hence long lasting LED driver.

Features:
• Phillips LM80 LED.
• High Voltage Isolation.
• High-efficient Power.
• High PFC (>0.95).
• 100% No flicker.
• UV free.
• No mercury.
• 50,000 hours lifespan @ L70.

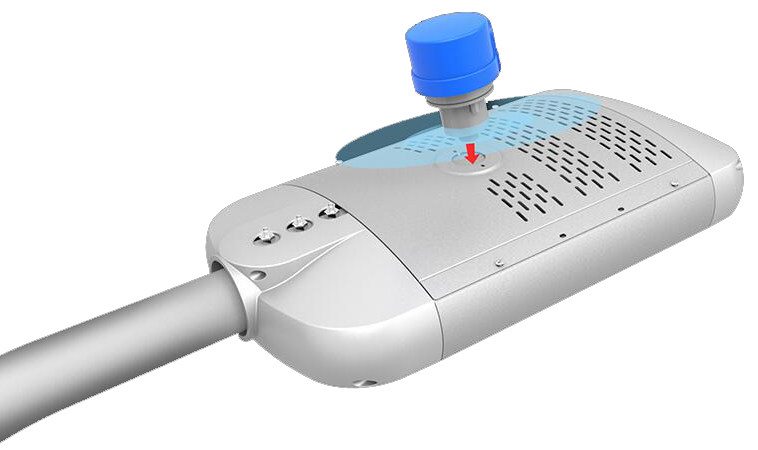

• Sensor or control option.
• 5 years warranty



HPS Lantern Wattage EP-Power Lamp
70W 30W (4000K)
150W 70W to 100W (4000K)
250W 130W to 180W (4000K)
400W 200W to 240W (4000K)

Darfon Power Supply Group has core competences in LED power conversion and product design for over a decade. Darfon works with world tier brand companies and provide OEM/ODM services in higher efficiency, lower power dissipation LED driver products.

Darfon’s highest IP grade waterproof LED power supplies are suitable for outdoor and indoor LED street lighting, high bay lighting, tunnel lighting, public signage, architectural lighting, decorative & office lighting etc. all series comply UL 8750, EN 61347-1, EN 61347-2-13, GB 19510.1, GB 19510.14 international safety regulations

Product Image Model Description Datasheet
MDC 060
  • Wide AC Input 90 ~ 305Vac; Active PFC
  • Constant Current Output 60W ~ 70W
  • DC Output Voltage Range: 21V ~ 200V?
  • Built-in 10KV lightning surge protection
Datasheet
MDC 080
  • Wide AC Input 90 ~ 305Vac; Active PFC
  • Constant Current Output 80W ~ 90W
  • DC Output Voltage Range: 21V ~ 257V
  • Built-in 10KV lightning surge protection
Datasheet
MDC 100
  • Wide AC Input 90 ~ 305Vac; Active PFC
  • Constant Current Output 90W ~ 100W
  • DC Output Voltage Range: 21V ~ 58V
  • Built-in 10KV lightning surge protection
Datasheet
MDC 120
  • Wide AC Input 90 ~ 305Vac; Active PFC
  • Constant Current Output 120W ~ 150W
  • DC Output Voltage Range: 21V ~ 430V
  • Built-in 10KV lightning surge protection
Datasheet
MDC 150
  • Wide AC Input 90 ~ 305Vac; Active PFC
  • Constant Current Output 140W ~ 160W
  • DC Output Voltage Range: 25V ~ 58V
  • Built-in 10KV lightning surge protection
Datasheet
MDC 185
  • Wide AC Input 90 ~ 305Vac; Active PFC
  • Constant Current Output 180W ~ 200W
  • DC Output Voltage Range: 25V ~ 400V
  • Built-in 10KV lightning surge protection
Datasheet
MDC 240
  • Wide AC Input 90 ~ 305Vac; Active PFC
  • Constant Current Output 240W ~ 250W
  • DC Output Voltage Range: 18V ~ 400V
  • Built-in 10KV lightning surge protection
Datasheet
MBC 100
  • Wide AC Input 90 ~ 305Vac; Active PFC
  • Constant Current Output 90W ~ 103W
  • DC Output Voltage Range: 25V ~ 63V
Datasheet
MBC 160
  • Wide AC Input 90 ~ 305Vac; Active PFC
  • Constant Current Output 150W ~ 160W
  • DC Output Voltage Range: 25V ~ 63V
Datasheet
DBL 070
  • Wide DC Input 10 ~ 52Vdc
  • Constant Current Output 50W ~ 70W
  • DC Output Voltage Range: 18V ~ 165V
Datasheet
DBL 170
  • Wide DC Input 10 ~ 52Vdc
  • Constant Current Output 100W ~ 170W
  • DC Output Voltage Range: 30V ~ 165V
Datasheet
