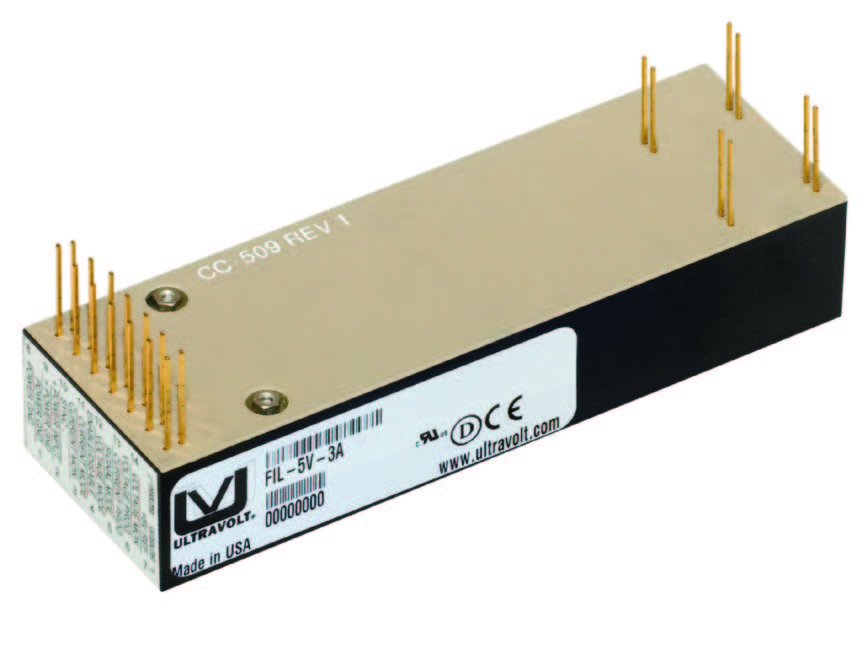

Precision Non-Isolated Filament Supply


Mass Spectrometry Power Supply Modules

The MS product range contains reversible products that can achieve a switching speed of 10ms to 99% of the output voltage, ripple and noise down to 10mV and a temperature coefficient as low as 5ppm/°C.

Being modular in design means variable output combinations are easily achieved with either uni, bi-polar or reversible outputs.

The MS modules run to a maximum of ±30kV and up to 85W, all with an input voltage of +24VDC.



Product Image Model Number Output Power
(Max)
Datasheet
MSS
  • Output voltages from 5kV to 20kV depending on model
  • 5W output power
  • Small package size
  • Versatile control option
  • Screened case for low magnetic radiation
Datasheet
MSQ
  • Quad outputs (from 400V to 1500V)
  • 85W output power
  • Each output individually protected
  • High reliability
  • Screened case for low magnetic radiation
  • Compact design
Datasheet
MSP
  • Output voltages from 1kV to 15kV depending on model
  • High stability
  • Low ripple (as low as 10mV)
  • Low temperature coefficient
  • Screened case for low magnetic radiation
  • High reliability
  • Versatile control options
Datasheet
MSRL
  • Output voltages from ±1kV to ±30kV depending on model
  • Reversible outputs (using HV relays)
  • High stability
  • Low ripple
  • Low temperature coefficient
  • Screened case for low magnetic radiation
  • High reliability
  • Versatile control options
Datasheet
MSRZ
  • Output voltages from ±1kV to ±10kV depending on model
  • Reversible outputs
  • High stability
  • Low ripple (typically 100mV)
  • Fast switching (typically 20ms to 99%)
  • Low temperature coefficient
  • Screened case for low magnetic radiation
  • High reliability
  • Differential programming input
Datasheet
MSRF
  • Output voltages from ±2.5kV to ±10kV depending on model
  • Reversible outputs
  • High stability
  • Low ripple (typically 300mV)
  • Fast switching (typically 10ms to 99%)
  • Low temperature coefficient
  • Screened case for low magnetic radiation
  • High reliability
  • Differential programming input
Datasheet
MSRD
  • Output voltages from ±5kV to ±12kV depending on model
  • +3kV 400µA programmable floating detector
  • High stability
  • Low ripple (typically Bias 200mV, Detector 3V)
  • Low temperature coefficient
  • Bias Four quadrant output stage
  • Bias controllable through zero
  • High reliability
Datasheet



X-Ray Power Supplies

The quality and performance of your system is only as good as its internal components—particularly when it comes to high voltage. Proper specification, selection, and integration of the high voltage X-ray source & detector determine power quality and reliability and correlate closely with more stable and accurate X-ray production and sample data. AE offers the following high voltage models for X-ray applications.

Product Image Model Number Output Power
(Max)
Datasheet
XRG70
  • 72 W high voltage output, max
  • 20 W grounded filament
  • Exceptionally compact
  • Local and remote operation
  • CE marked for EU LV directive 2006/95/EC
  • EU RoHS compliant to 2002/95/EC
  • Safety interlock
  • High accuracy and stability
Datasheet
XR150
    • 150 W high voltage output
    • 17 W floating filament
    • High accuracy and stability

—Emission accuracy: 0.1%
—Regulation: 0.1%
—Stability: 100 ppm

  • Exceptionally compact
  • Remote operation
  • Analog or RS-232 control interface
    Safety interlock
  • Extensive tube and system protection functions
Datasheet
XR1000
  • 1 KW of output power
  • Extensive tube protection facilities
  • Robust IGBT converter design
  • Short-circuit and overload protection
  • High stability
  • High-accuracy beam current control
  • Low ripple
  • Analog or RS-232 interface
Datasheet



Precision SEM E-Beam Power Supplies

AE’s enabling high voltage products include precision e-beam technologies for SEM (scanning electron microscope) tools that deliver impressive performance and a host of advantages for critical processes to improve tool performance and, ultimately, increase throughput and yield. Accurate and reliable, these power supplies maximize image quality and repeatability

Product Image Model Number Output Power
(Max)
Datasheet
EG353
  • Low ripple (< 1.6 ppm, accelerator) and high stability (< 10 ppm, accelerator)
  • Small footprint module or 19 inch rack-mounted versions
  • -30 kV accelerator, 200 μA, (-35 kV for conditioning)
  • +10 kV extractor, 400 μA, 20 mV ripple (floating)
  • -1 kV suppressor, 100 μA, 30 mV ripple (floating)
  • 5 V at 3 A current-controlled low-ripple (LF < 1 mA, peak to peak) heater (floating)
  • Additional grounded outputs may be added for greater flexibility
  • Easy-to-use digital control and monitoring minimizes setup and configuration times (fiber-isolated RS-232
Datasheet

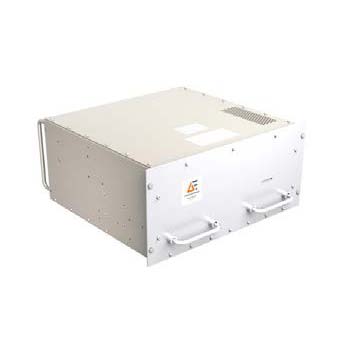

G603
  • Low ripple and very high stability for demanding applications
  • -60 kV accelerator, 100 μA, 75 mV ripple
  • Active aAccelerator temperature compensation, 5 ppm max over 10°C to 40°C
  • +10 kV extractor, 400 μA, 35 mV (floating)
  • -1 kV suppressor, 100 μA, 25 mV ripple (floating)
  • 5 V, 3 A current controlled low ripple heater (floating)
  • Optional +25 kV focus, 30 μA, 100 mV (floating)
  • Full digital control and monitoring using fibre isolated 29-bit CAN
Datasheet



Capacitor-Charging Power Supplies

The Series CC1000 is a range of high performance, high reliability capacitor charging power supplies intended for use as a component power supply in medical and industrial environments. It features high frequency switching techniques to combine a power factor corrected and resonant converter in a compact unit. This range has been designed to allow customization to suit specific OEM applications.

Product Image Model Number Output Power
(Max)
Datasheet
CC1000
  • 1kW output power
  • High efficiency zero current and voltage switching techniques
  • Positive and negative voltage versions available
  • Excellent pulse to pulse repeatability characteristics
  • Compact size
  • Low weight
Datasheet



Ion Pump Power Supplies

The IP100 is designed to drive a vacuum chamber ion pump, where a vacuum in the region of 1x10E-11 Torr is required.

Product Image Model Number Output Power
(Max)
Datasheet

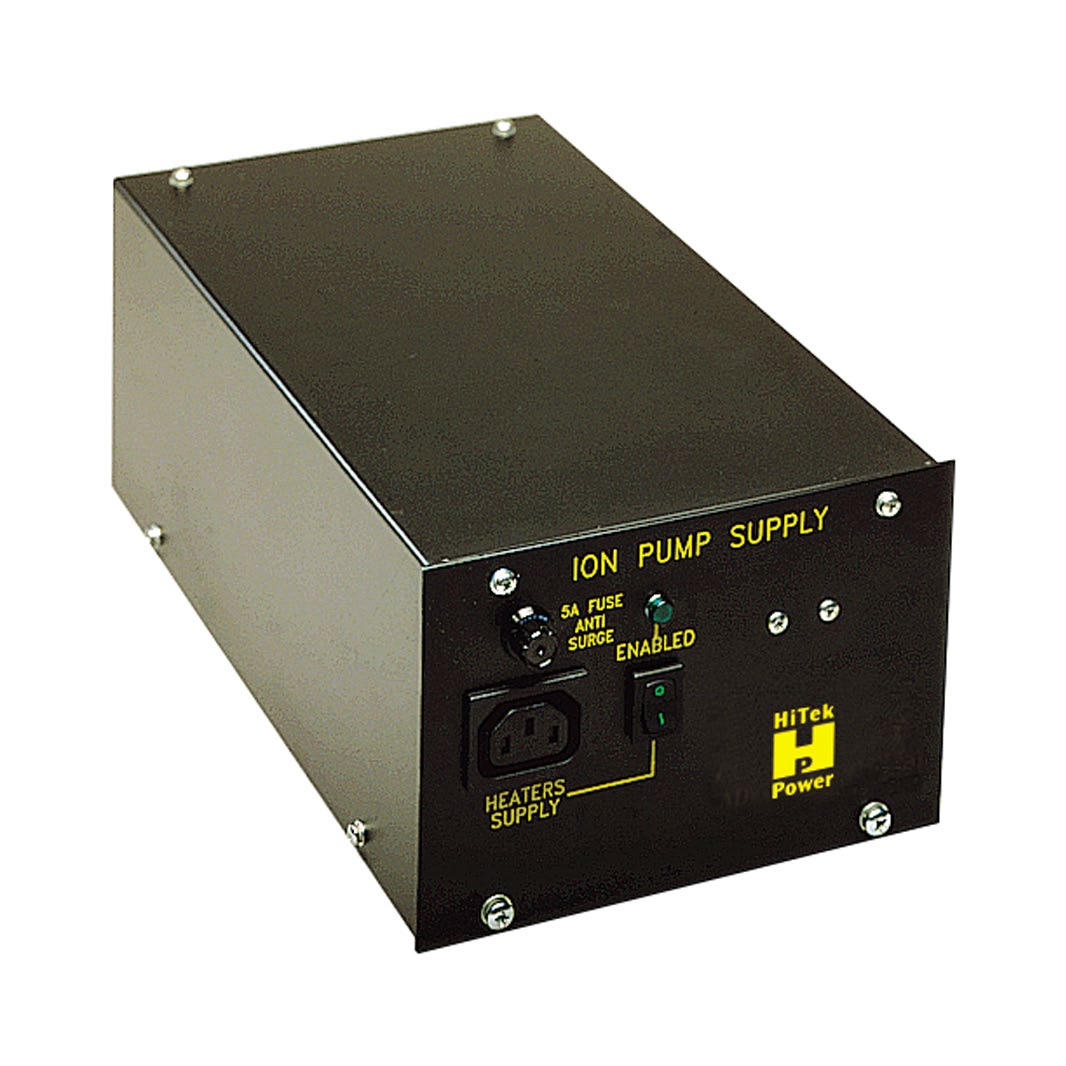

IP100
  • 90V to 265V AC Operation
  • 115W Output Power
  • Positive or negative polarity
  • Compact size
  • Lightweight – only 1.6kg
  • Protection against output short circuit
  • Current monitor
  • Safety interlock
  • EU RoHS compliant to 2011/65/EU
Datasheet



Ink-Jet Printer Power Supplies

Product Image Model Number Output Power
(Max)
Datasheet
MPM
  • Output power: 1.5 W, continuous
  • Output voltage: 100 V to 3 kV
  • Output isolation option
  • Ripple: 0.05% peak to peak (screened versions)
  • Temperature coefficient: < 300 ppm/°C
  • Stability: < 0.1% per hour after stabilization, over eight hour period
Datasheet

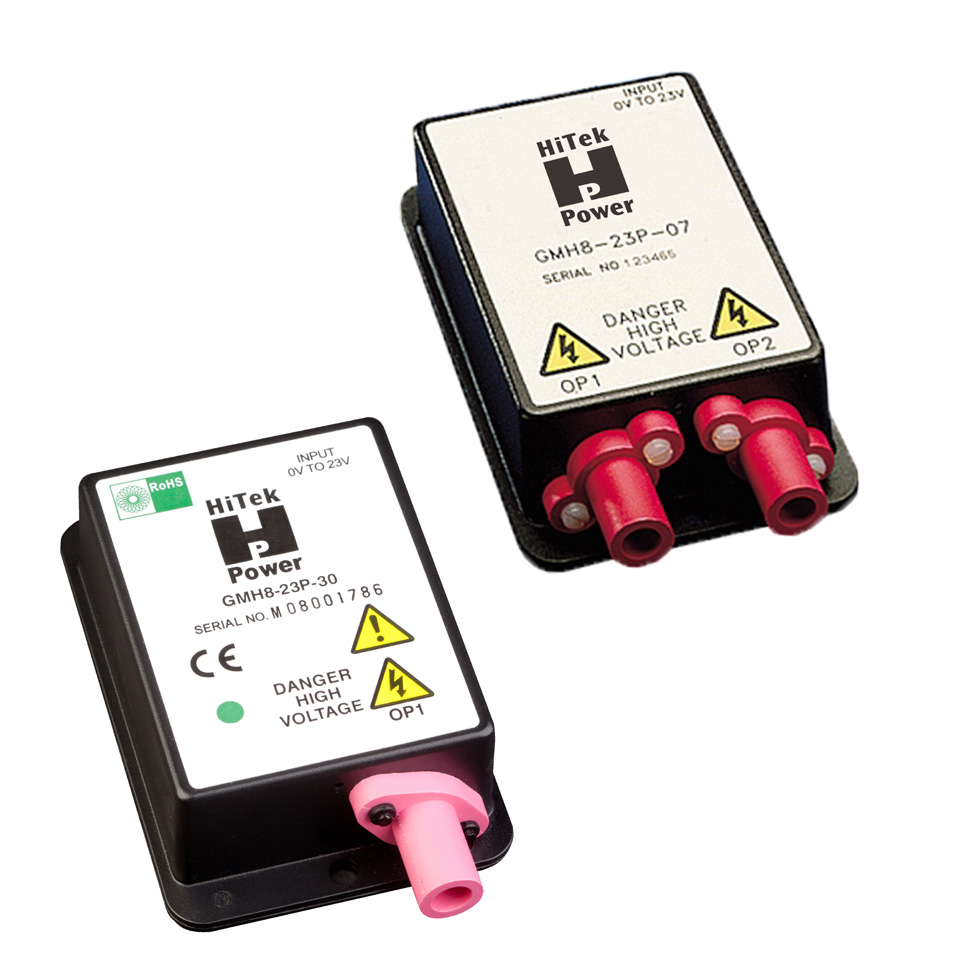

GMH8
  • 0.6 W output power
  • Compact
  • Light weight
  • High reliability
  • Single and dual tracking outputs
  • RoHS compliant to 2011/65/EU
  • CE marked
Datasheet



Versatile High Voltage Power Supply Modules

The MH series is a range of versatile high-voltage power supply modules suitable for specification in OEM equipment. Powered from 24 V DC, they supply up to 60 W output and allow full range control and monitoring of output voltage and current. Custom versions can be produced for specific requirements.

Product Image Model Number Output Power
(Max)
Datasheet

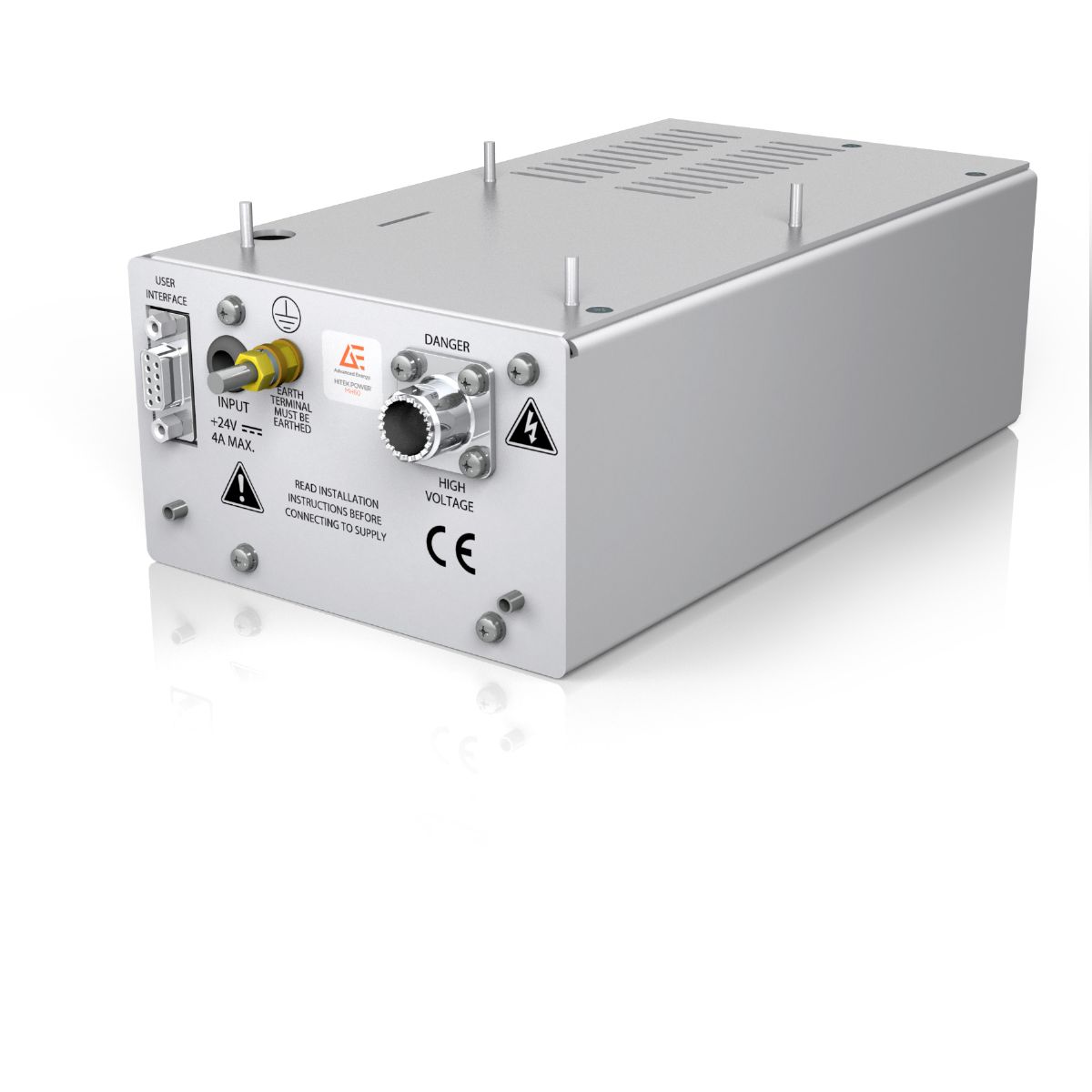

MH60
  • 60 W output power
  • High reliability
  • 24 V DC powered
  • Range of outputs available
  • Positive or negative polarity
  • Short circuit and flashover protection
  • Remotely controllable
  • V and I control
  • V and I monitor
Datasheet

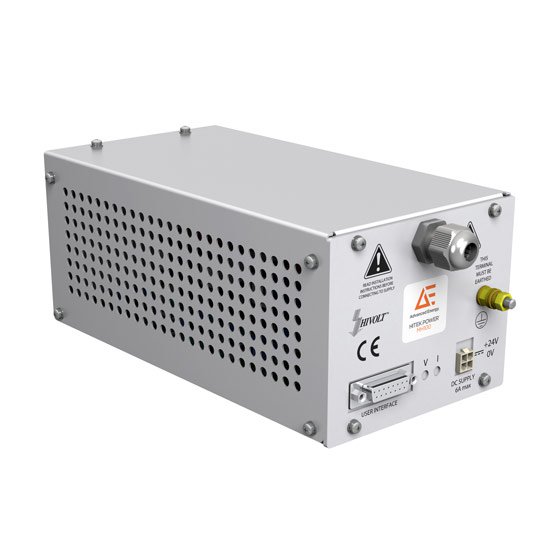

MH100
  • 100 W output power
  • High reliability
  • 24 VDC powered
  • Range of outputs available
  • Positive or negative polarity available
  • Short circuit and flashover protection
  • Remotely controllable
  • V and I control
  • V and I monitor
Datasheet
MHX
  • 100W max output power
  • High reliability
  • 24V DC powered
  • Positive or negative polarity
  • Short circuit and flashover protection
  • Remotely controllable
  • V & I control
  • V & I monitor
Datasheet



Photomultiplier Power Supplies

The Series PM10 is a range of versatile high voltage component photomultiplier modules equally suited to both laboratory and development work and for specification in OEM equipment. Powered from 24 V DC, these units allow full range control and monitoring of voltage and current via 0 to 10 V analog signals and an inhibit signal input. Positive or negative polarity models are available.

Product Image Model Number Output Power
(Max)
Datasheet
PM10
  • 10 W output power
  • V and I control
  • V and I monitor
  • Output inhibit
  • High stability
  • Positive or negative polarity models
  • Short circuit and flashover protected
  • RoHS compliant to 2011/65/EU
  • CE marked
Datasheet



Micro-Sized High Voltage

Measuring only 5.75 cc (0.35 in3), the highly compact, micro-sized US series is specially designed to meet the needs of design engineers working with commercial, military, industrial, and medical applications. These modules allow access to voltages up to 500 V for customers with size-critical requirements.
The XS series of extra-small high voltage power supplies is the smallest regulated DC-to-DC high voltage power supply for applications that require a bias voltage ranging from 0 to 100 V. Measuring only 1.3 cc (0.08 in3), these modules are ideal for use in size-critical applications

Product Image Model Number Output Power
(Max)
Datasheet

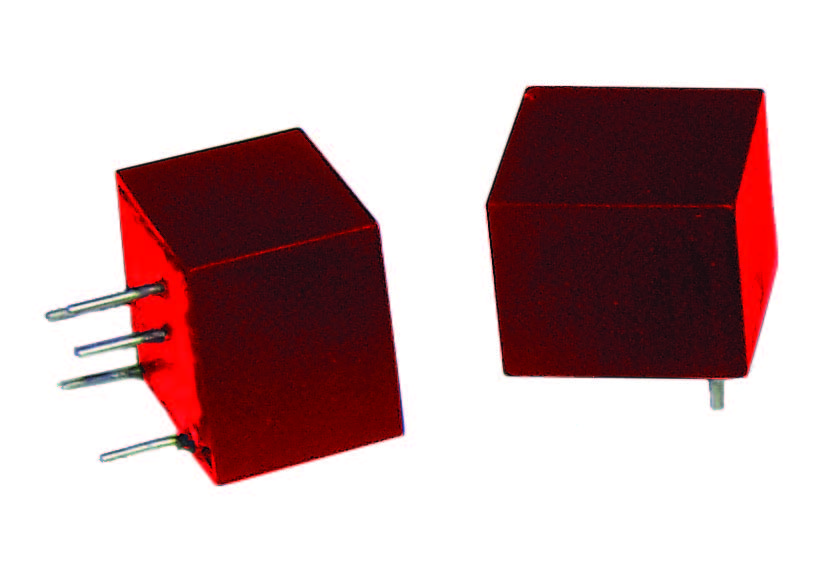

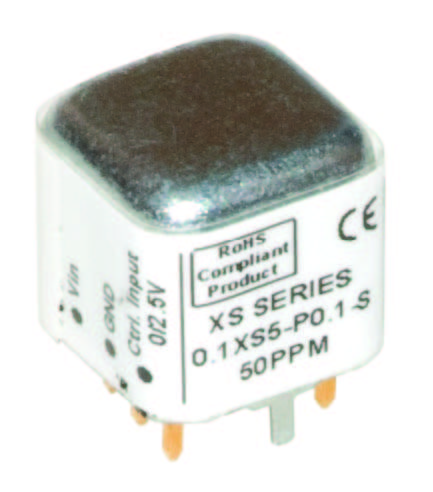

XS Series
  • Extra-small size: 1.3 cc
  • Lightweight: 5 g
  • PCB flat mounting: 11 mm height
  • Output from 0 to 100 V
  • 100 mW output power
  • Low ripple (< 50 mV peak to peak)
  • Tight line/load regulation < ±0.0 1%
  • Low temperature coefficient < ±50 ppm per °C
  • Programmable HV output ±2.0% F.S.
  • Output current limit protection
  • 5 or 9 VDC Input
  • Metal case for low radiated noise
Datasheet

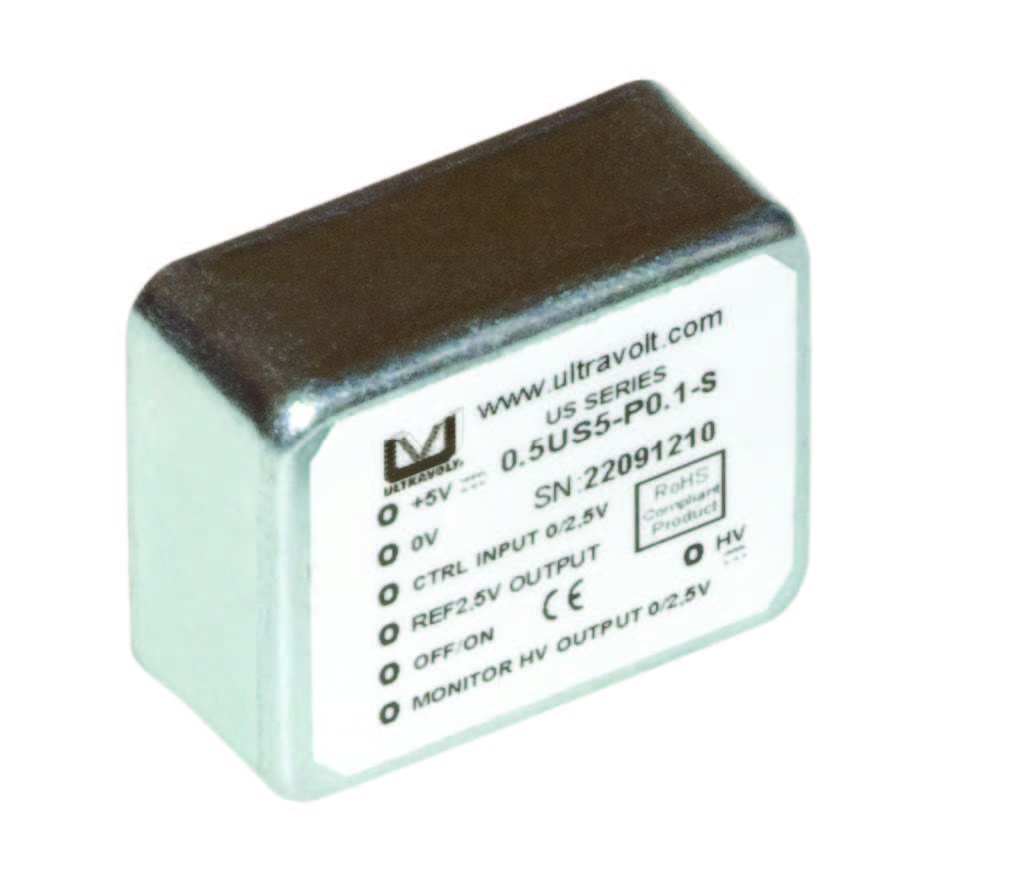

US Series
  • 4 models from 0 to 200 V to 500 V
  • Lightweight: 13 g
  • PCB flat mounting: 11 mm height
  • 100 mW output power
  • Tight line/load regulation
  • Arc and short circuit limits
  • 5 or 12 to 15 VDC input
  • TTL enable/disable
  • Miniature and light weight
  • Temperature coefficient of 50 ppm/°C
  • Optional flying lead for HV output
  • Low ripple (< 20 mV peak to peak)
  • Low noise due to metal shielding
  • Precision 2.5 V reference
Datasheet

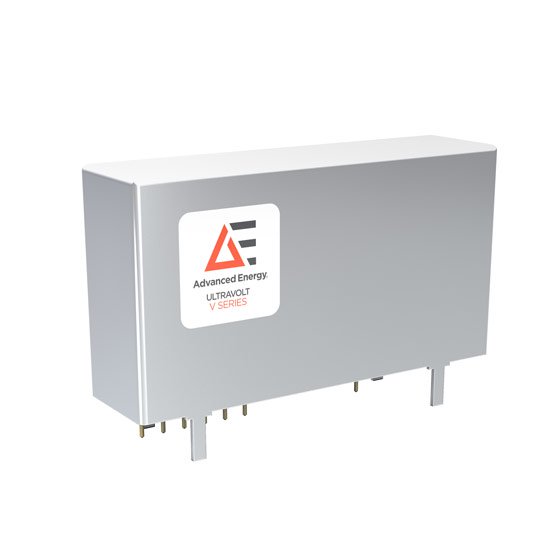

V Series
  • 7 models from 0 to 600, 1000, 1250, 1500, 2000, 2500, or 3000 V
  • 0.5, 0.8, or 1 W of output power
  • Tight line/load regulation
  • Arc and continuous short circuit protection
  • Self restoring output voltage
  • Low cost
  • Miniature and light weight
  • 5 V reference
  • Voltage monitoring
  • Low ripple (0.01% peak to peak)
  • Optional flying lead for HV output
Datasheet

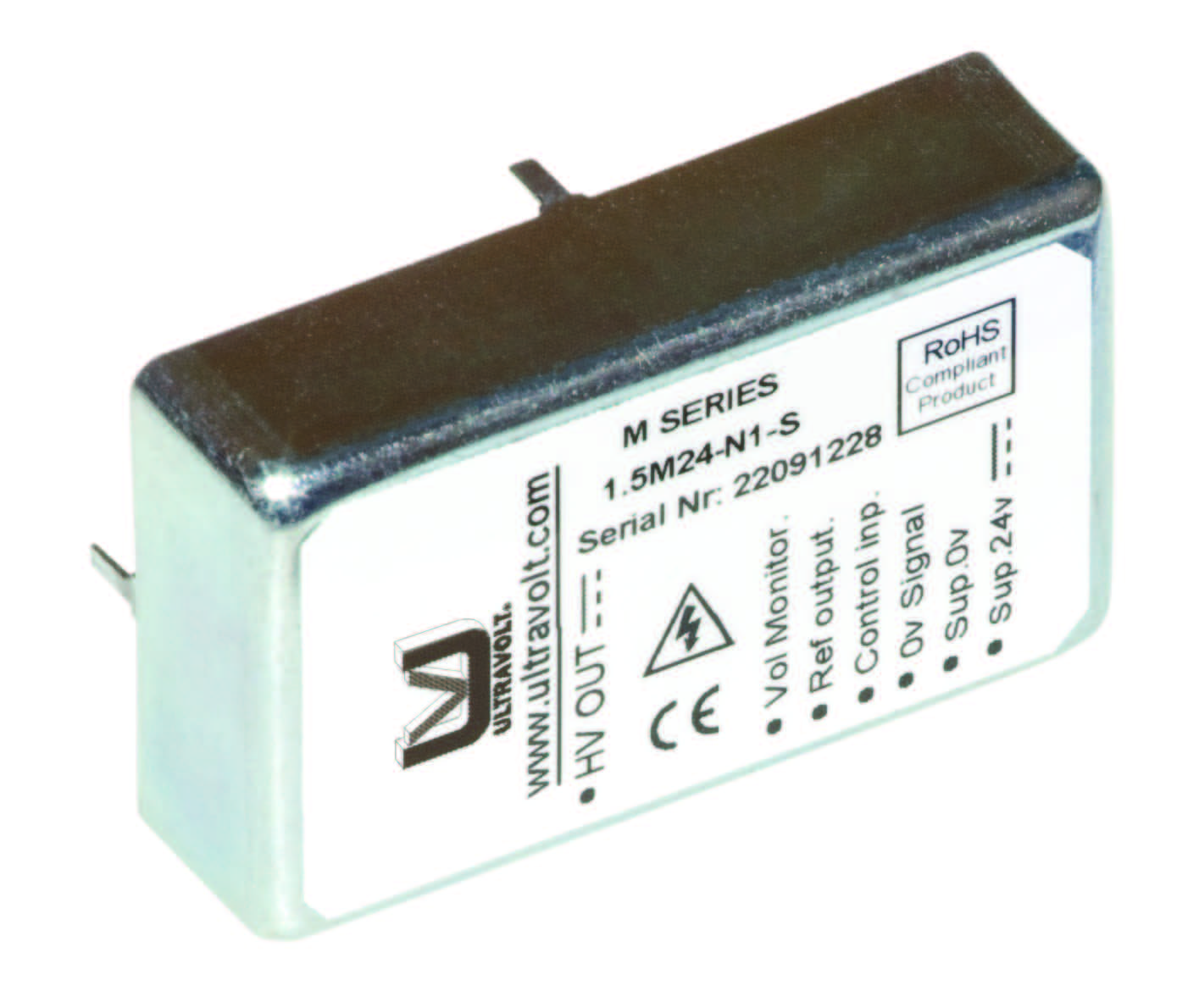

M Series
  • Seven models from 0 to 600, 1000, 1250, 1500, 2000, 2500, or 3000 V
  • 0.5, 0.8 or 1 W output power
  • Tight line/load regulation
  • Arc and continuous short circuit protection
  • Self-restoring output voltage
  • Low cost
  • Miniature and light weight
  • Voltage monitoring
  • Low ripple (0.01% peak to peak)
  • Optional flying lead for high voltage output
Datasheet
D Series
  • 4 models from 0 to 1 kV through 0 to 6 kV
  • 1, 2, 4, or 6 W output power
  • Low ripple (< 0.02% peak to peak)
  • Tight line/load regulation
  • Output current limit protection
  • Adjustable from 0 to full output
  • Buffered voltage and current monitoring
  • 15 or 24 VDC input
  • Low profile and lightweight
  • PCB flat mounting
Datasheet



Single-Output High Voltage Modules

Product Image Model Number Output Power
(Max)
Datasheet

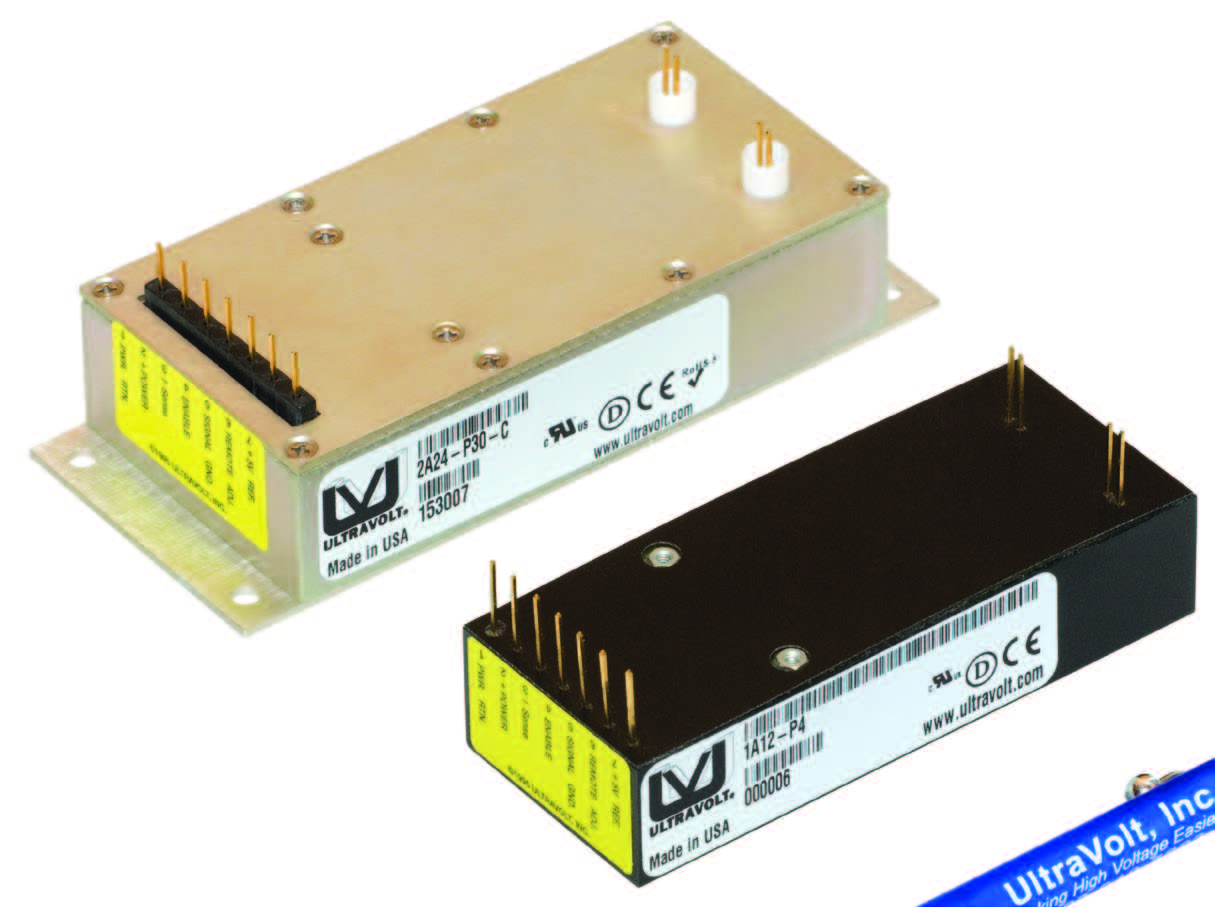

A Series
  • Eight models from 0 to 62 V through 0 to 6 kV
  • 4, 20, or 30 W of output power
  • Maximum Iout capability down to 0 V
  • Wide input voltage range
  • Available with Ripple Stripper® filter (-F option)
  • Indefinite output short-circuit protection
  • Output current monitor
  • Fixed-frequency, low-stored-energy design
  • > 430,000 hour MTBF at 65°C (149°F)
  • UL/cUL recognized component; CE Mark (LVD and RoHS)
Datasheet

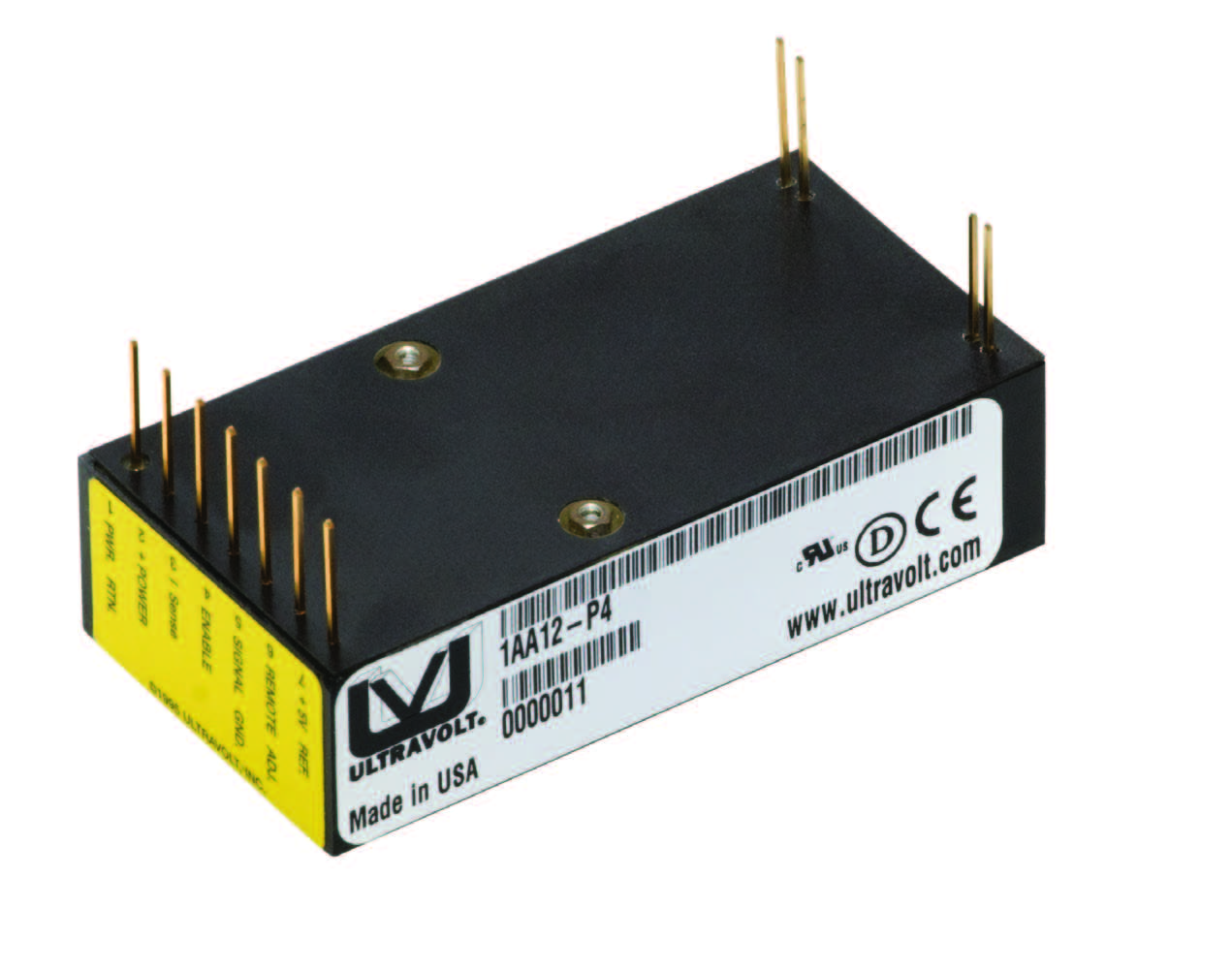

AA Series
  • 22% smaller than standard A series
  • 8 models from 0 to 62 V through 0 to 6 kV
  • 4, 20, or 30 W output power
  • Max Iout capability down to 0 V
  • Wide input voltage range
  • Indefinite output short-circuit protection
  • Output current and voltage monitors
  • Fixed-frequency, low-stored-energy design
  • UL/cUL recognized component; CE Mark (LVD & RoHS)
Datasheet

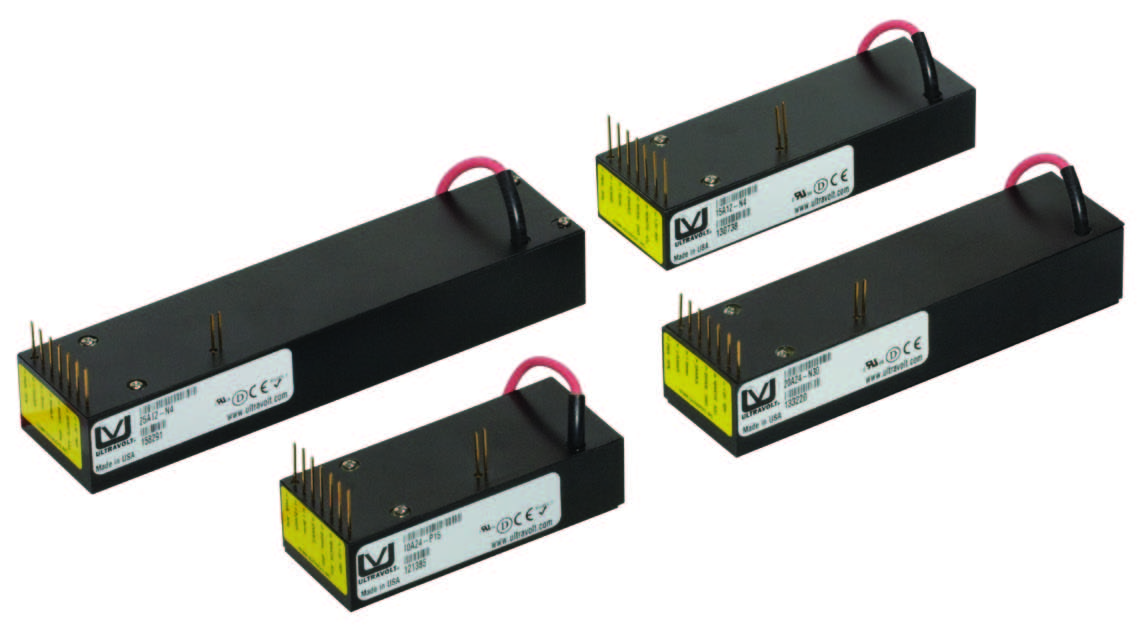

10A-25A Series
  • 0 to 10kV, 15kV, 20kV, or 25kV output
  • 4, 15, or 30 watts of output power
  • Maximum Iout capability down to 0 Volts
  • Wide input voltage range
  • Indefinite output short-circuit protection
  • Output current & voltage monitors
  • Fixed-frequency, low-stored-energy design
  • >450,000 Hr. MTBF @65°C
Datasheet

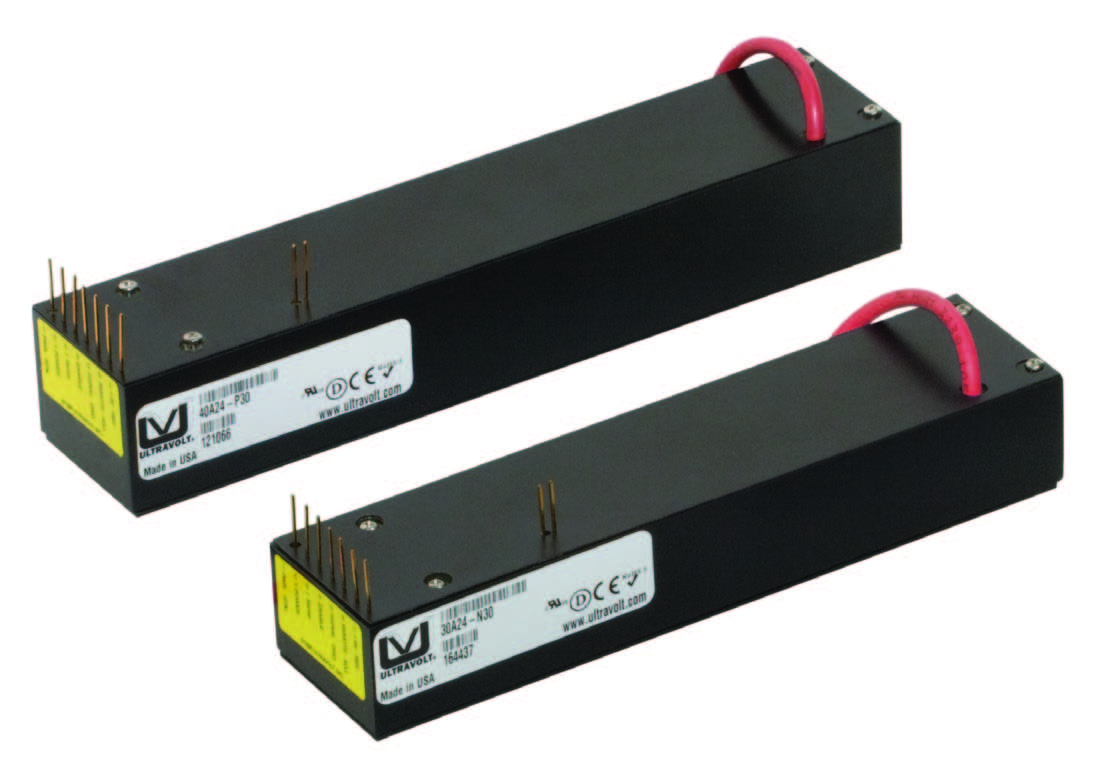

30A-40A Series
  • 0 to 30kV, 35kV or 40kV output
  • 4, 15, or 30 watts of output power
  • Maximum Iout capability down to 0 Volts
  • Wide input voltage range
  • Indefinite output short-circuit protectio
  • Output current & voltage monitors
  • Fixed-frequency, low-stored-energy design
  • >400,000 Hr. MTBF @65°C
Datasheet

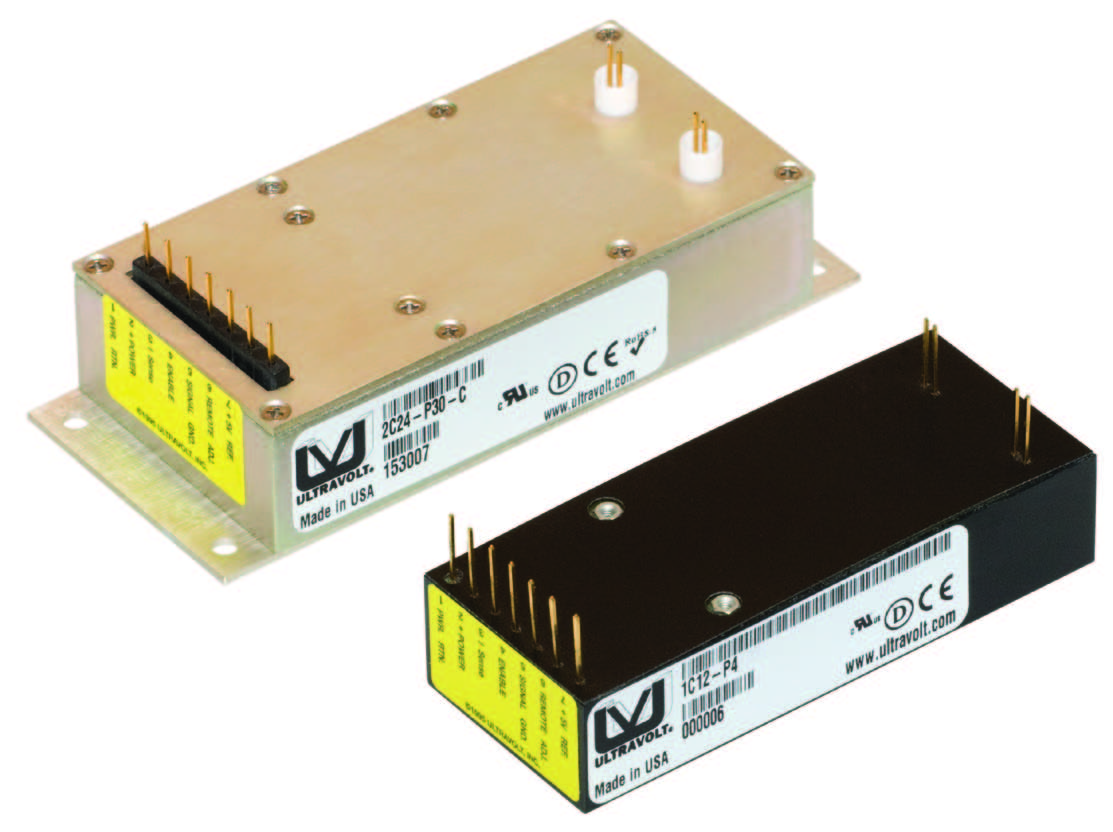

C Series
  • Seven models from 0 to 125 V through 0 to 6 kV
  • 60, 125, or 250 W of output power
  • Maximum Iout capability down to 0 V
  • Maximum Iout during charge/rise time
  • Output short-circuit protection
  • Very fast rise with very low overshoot
  • High efficiency
  • High power-to-voltage density
  • Very low profile
  • Output current and voltage monitors
  • > 200,000 hour MTBF at 65°C (149°F)
  • Fixed-frequency, low-stored-energy design
Datasheet

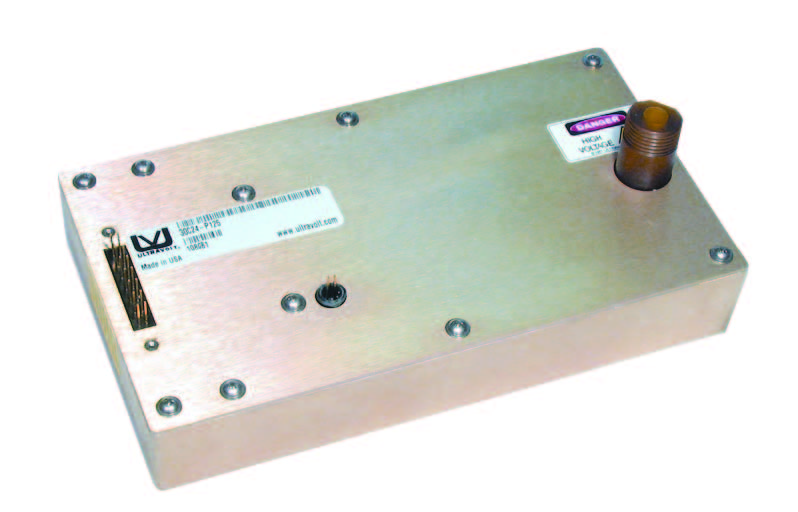

High Power C Series
  • 7 models from 0 to 125 Volts through 0 to 6kV
  • 60, 125, or 250 watts of output power
  • Maximum Iout capability down to 0 Volts
  • Maximum Iout during charge/rise time
  • Output short-circuit protection
  • Very fast rise with very low overshoot
  • High efficiency
  • High power to voltage density
  • Very low profile
  • Output current & voltage monitors
  • >200,000 hour MTBF @65°C
Datasheet
E Series
  • Precision output voltage from
  • 0 to 1 kV through 0 to 15 kV
  • PPM level ripple, regulation and stability
  • As low as 10 ppm temperature coefficient and reference
  • 0 to 4, 15/20, or 30 W of output power
  • Maximum Iout capability down to 0 V
  • Voltage and current regulation/limit capability
  • Precision output voltage and current monitors
Datasheet
PXS Series
  • Ultra-miniature size 0.1 in3 (1.6cc)
  • Unipolar models 0 to 5 0V through 300 V
  • Bipolar models 0 to ±25 V through ±150 V
  • Proportional or fixed output voltage
  • Output power of 0 to 1.5 or 3 W
  • Excellent load regulation
  • Efficiency as high as 90%
  • 1000 V isolation from input to output
  • Output can be floated up to 1 kV
  • No heat sink or electrical derating required
  • Lower ripple available with Mu-Metal shielding (-M option
Datasheet

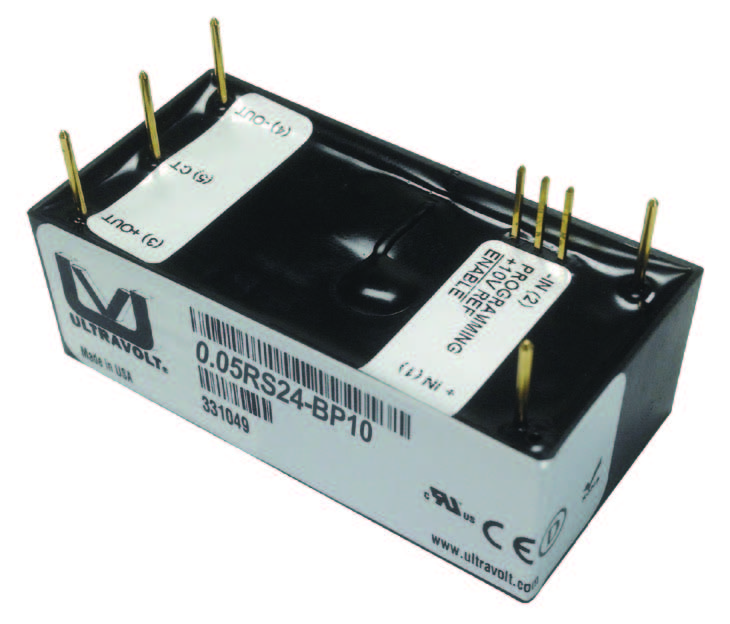

RS Series
  • 12 bipolar models 0 to ±50 to ±700 VDC or 100 to 1400 VDC unipolar
  • Proportional, programmable, or fixed output voltage
  • Output power 0 to 10 W; no minimum load
  • Excellent accuracy ≤±1%
  • Excellent load regulation <0.5%
  • Output ripple ≤±0.5% V pk-pk
  • 2500 V isolation from input to output
  • No heat sink or electrical de-rating required
  • Complimentary to the 1.5/3 W PXS series
  • >840,000 hr MTBF per Belcor TR332
Datasheet



Multi-Output High Voltage Modules

Product Image Model Number Output Power
(Max)
Datasheet
Dual: Aux Series
  • Adds a second + or – HV output
  • Fixed regulated output
  • Encapsulated with “A” or “C” Series HVPS
  • Creates a 4.9 in³ dual-output supply
  • Fixed-frequency, low-stored-energy design
  • High power density
  • Output short-circuit protected
  • UL/cUL Recognized Component; CE Mark (LVD & RoHS)
Datasheet
Triple: Aux Series
  • Adds Focus and Grid outputs
  • Encapsulated within 10A-35A Series
  • Adjustable regulated outputs
  • Creates a 6.5 in³ triple output supply
  • Fixed-frequency, low-stored-energy design
  • High power density
  • Indefinite output short-circuit protection
Datasheet
Dual: Bi-Polar C Series
  • 7 models from 0 to ±125 Volts through 0 to ±6 kV
  • 125 or 250 watts of total output power
  • Dual, independently controlled outputs
  • Output current & voltage monitors
  • High efficiency
  • Maximum Iout down to 0 Volts
  • Low profile
  • Fast Trise with very low overshoot
  • High power to voltage density
  • >200,000 hour MTBF at 65°C
  • Output short-circuit protection
  • Fixed-frequency, low-stored-energy design
Datasheet
Ultravolt® FLHV Series
  • High input output isolation supports floating electronics on high voltage
  • High output stability (< ±0.5%) from no load to full load
  • Accurate monitoring (±2.0%) of the floating bias supply output voltage and current
  • Excellent unit-to-unit repeatability
Datasheet



High Voltage Amplifiers

25ppm/°C on the HV output voltage
25ppm/°C on the output voltage monitor
5ppm/°C on the +10VDC reference
Output control and current monitor calibrate to <±0.5%

Product Image Model Number Output Power
(Max)
Datasheet

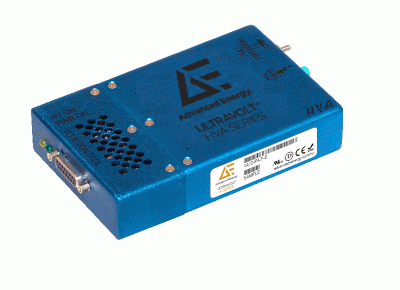

HVA Series
  • DC, reversible, and amplifier modes
  • Fast slew rate (40 V/μs) and high bandwidth
  • Can both source and sink current
  • Bipolar models available at 0 to 5 kV
  • Unipolar models available at 0 to 10 kV
  • PPM level line and load regulation
  • 50 ppm temperature coefficient (25 ppm optional)
  • Available reduced ripple option
  • Differential precision 0 to 10 VDC control input
  • Precision output voltage and current monitors
Datasheet

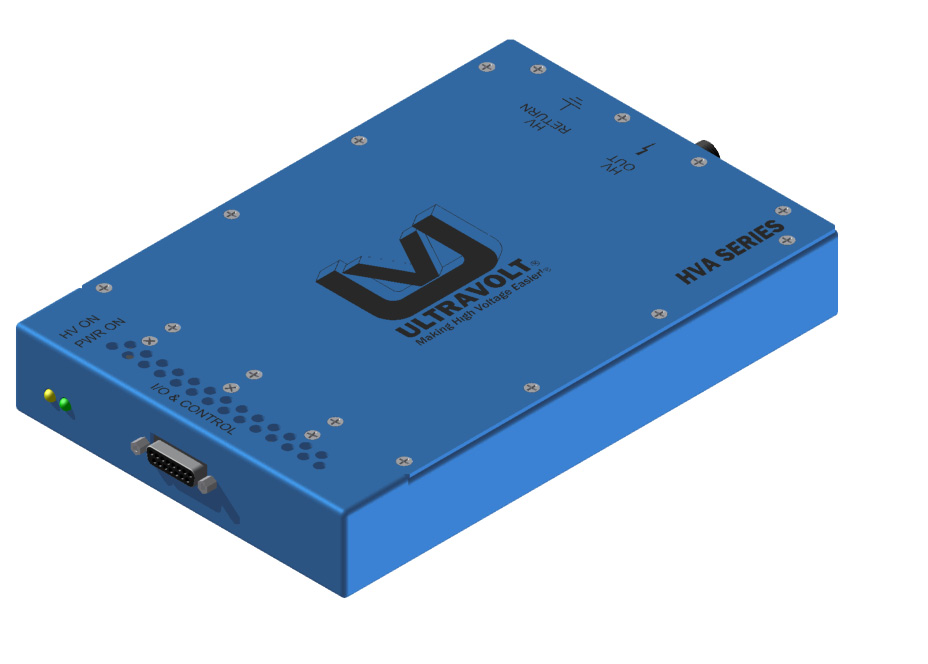

10HVA-20HVA Series
  • Bipolar models available at 0 to 10kV, 15kV, 20kV
  • Unipolar models available at 0 to 15kV & 20kV
  • Operates in DC, reversible, and amplifier modes
  • Fast slew rate (40V/μs) and high bandwidth at an excellent value
  • Can both source and sink current
  • PPM level line & load regulation
  • 25ppm temperature coefficient
    (15ppm optional)
  • Reduced ripple option available
  • Differential precision 0 to 10VDC control input
  • Precision voltage and current monitors
Datasheet



HIGH VOLTAGE POWER SYSTEMS

Configurable 1-4 channel system available to 1 kW Advanced systems feature computerized displays Memory function for loading user data available

Product Image Model Number Output Power
(Max)
Datasheet

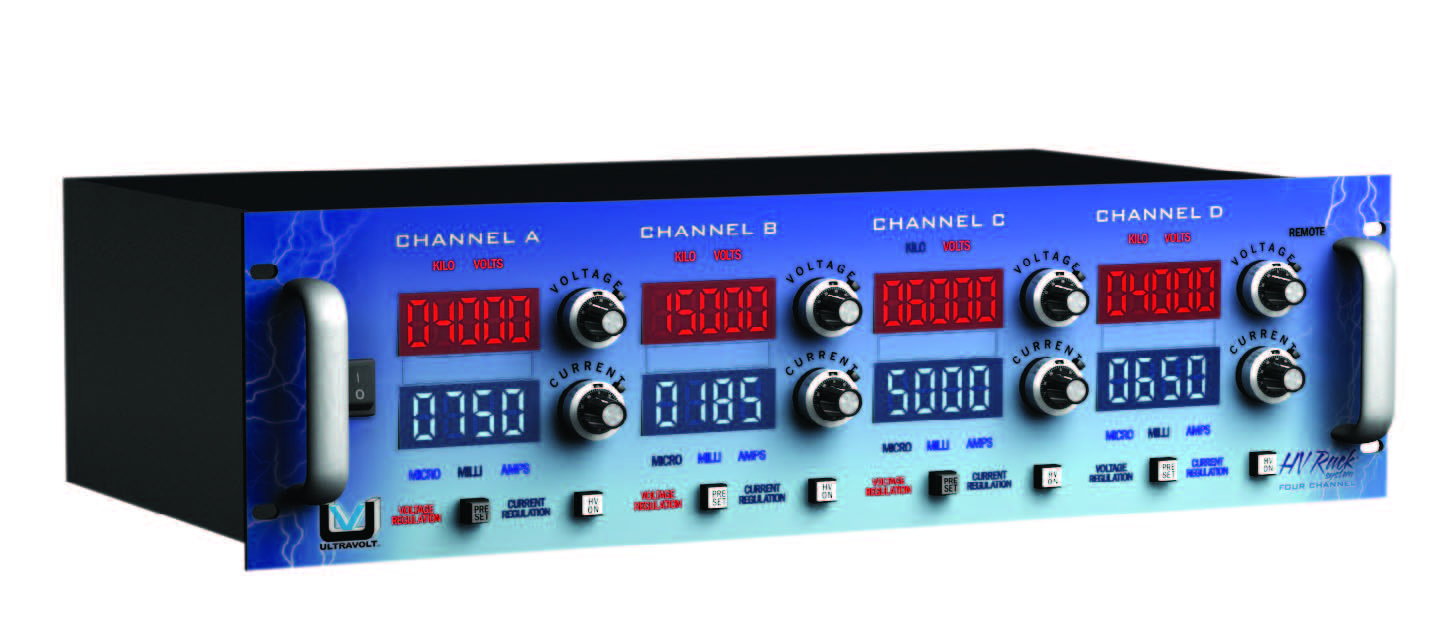

HV Rack Configurable Series
  • 1 to 4 configurable high voltage output channels
  • 4 to 1000 W per channel, up to 1000 W total
  • Independent control and monitoring of each channel
  • Voltage and current meters for each channel
  • Constant current / Constant voltage auto-crossover
  • Pre-set before and during bias capability
  • PLC analog/digital remote operation capability
Datasheet

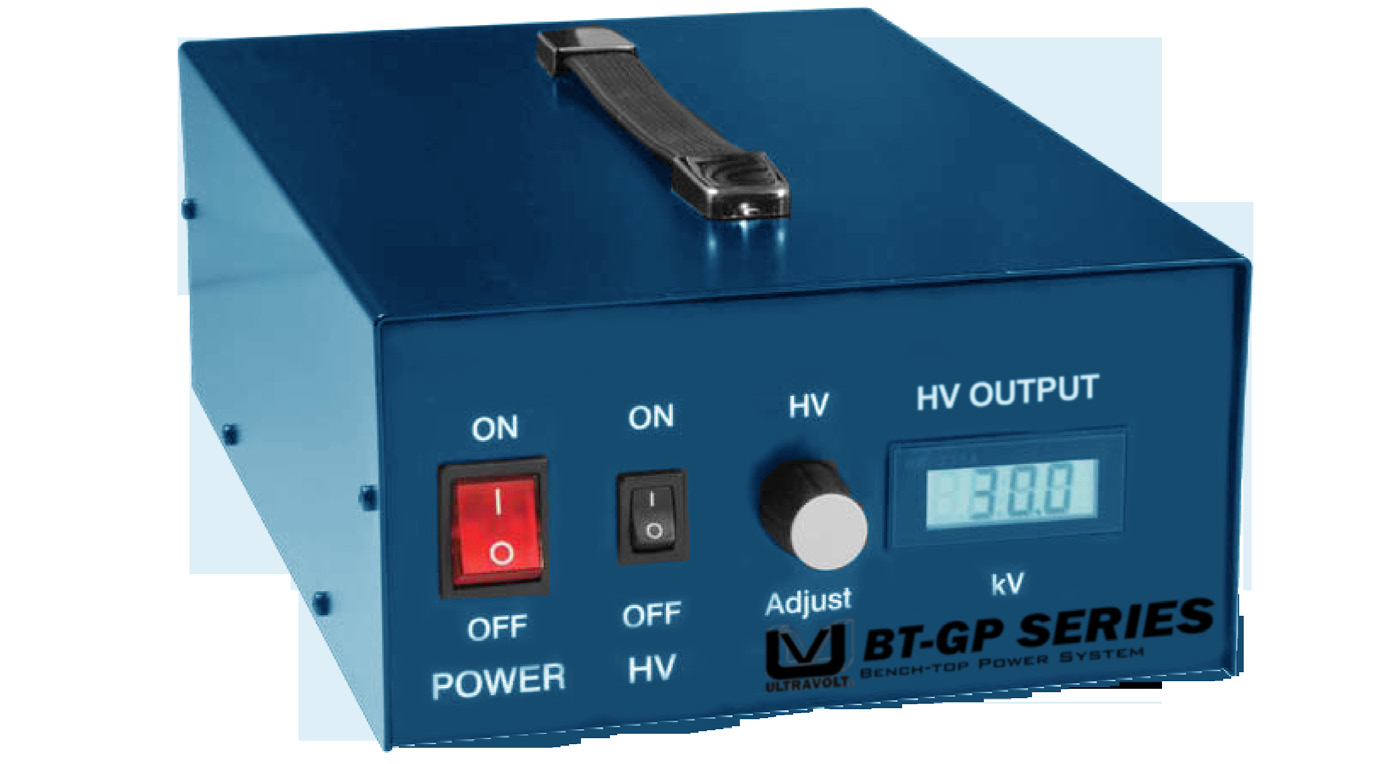

BT-GP Series
  • Available from 0 to 1kV through 0 to 30kV
  • Up to 30W of output power
  • 3.5 digit LED output voltage display
  • Bench-top configuration
  • Single positive or negative output
  • Ruggedized steel enclosure
  • Enters constant current mode when fault occurs
  • Highly portable with built in carrying handle (AC model)
  • Protection against overload, short circuit, arc, and reverse polarity
Datasheet



Isolated Low Voltage Power Supplies

Floating “Hot Deck” isolation module
150 GΩ isolation resistance @15 kV
2 GΩ isolation resistance @ 30 kV
Includes analog I/O, digital I/O & LVPS all isolated to 15 kV / 30 kV

Product Image Model Number Output Power
(Max)
Datasheet
FL Series
  • Isolated up to 15kV
  • DC leakage current of <10nA
  • AC leakage capacitance of <40pF
  • 3 regulated floating LV power outputs
  • Isolated digital I/O to and from floating hot deck
  • Isolated analog I/O to and from floating hot deck
Datasheet

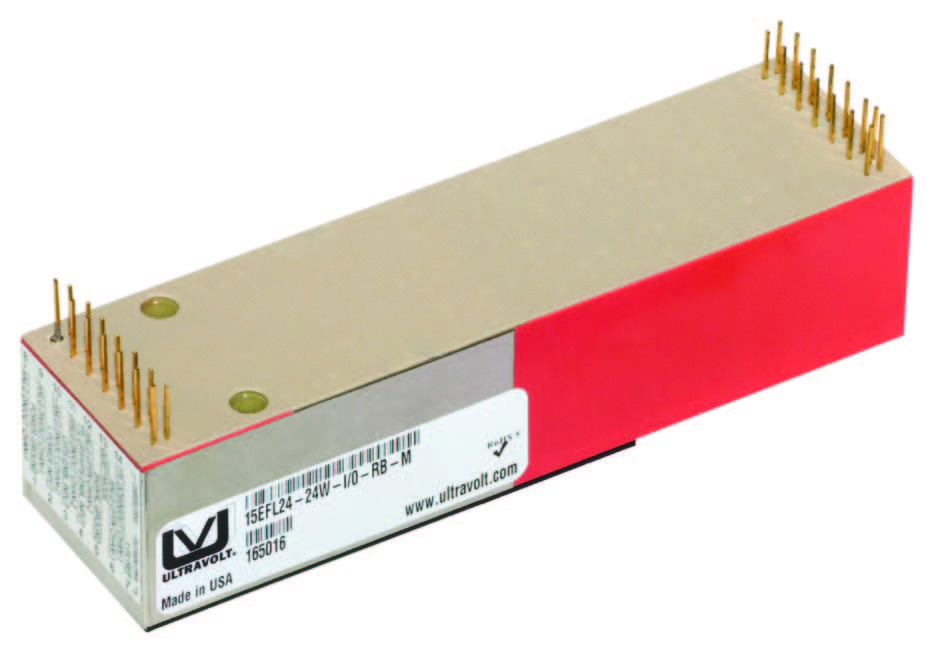

EFL Series
  • Precision analog control
  • Linearity of ±0.05% and accuracy of ±0.2%
  • 10ppm temperature coefficient
  • Isolated up to 15 kV or 30kV
  • Isolation resistance of 150 GΩ (15 kV) or 2 GΩ (30 kV)
  • 4 regulated floating LV power outputs
  • Isolated digital and analog I/O to and from floating hot deck
Datasheet



Precision Non-Isolated Filament Supply

The FIL Series is a non-isolated precision filament supply. This line of regulated DC-DC converters addresses the needs of the high precision and high stability power supply user.

Product Image Model Number Output Power
(Max)
Datasheet
FIL Series
  • High precision and high stability
  • 15PPM temperature coefficient
  • 0 to 5VDC
  • 0 to 3 Amps of current
  • Maximum Iout capability down to 0 Volts
  • Programmable voltage and current controls
  • Indefinite output short-circuit protection
  • Buffered output current & voltage monitors
  • Excellent linearity & accuracy of control
  • Current mode and voltage mode indicator
    Synchronizable
Datasheet

Our Partners

Quick Contact
close slider

Drop a Message

Please prove you are human by selecting the Flag.
